The NEWTOP T30 Outboard Motor Parts Set is engineered for outboard engine users who need components capable of maintaining dependable performance in varying water conditions. From crankshaft assemblies to cylinder-related parts, each item is produced with stable machining and reliable material selection to ensure long-term operation.
The piston, ring, crank mechanism, and gear components work together to keep the motor running smoothly, helping maintain consistent thrust and reliable load handling. CDI ignition parts support efficient starting, while the corrosion-resistant construction of key assemblies helps reduce wear caused by frequent marine exposure.
NEWTOP offers a complete selection of outboard motor parts suitable for routine replacement and long-term maintenance needs, supporting marine service shops, outdoor power equipment dealers, and boating operators seeking stable quality in an Outboard Motor Parts Set.

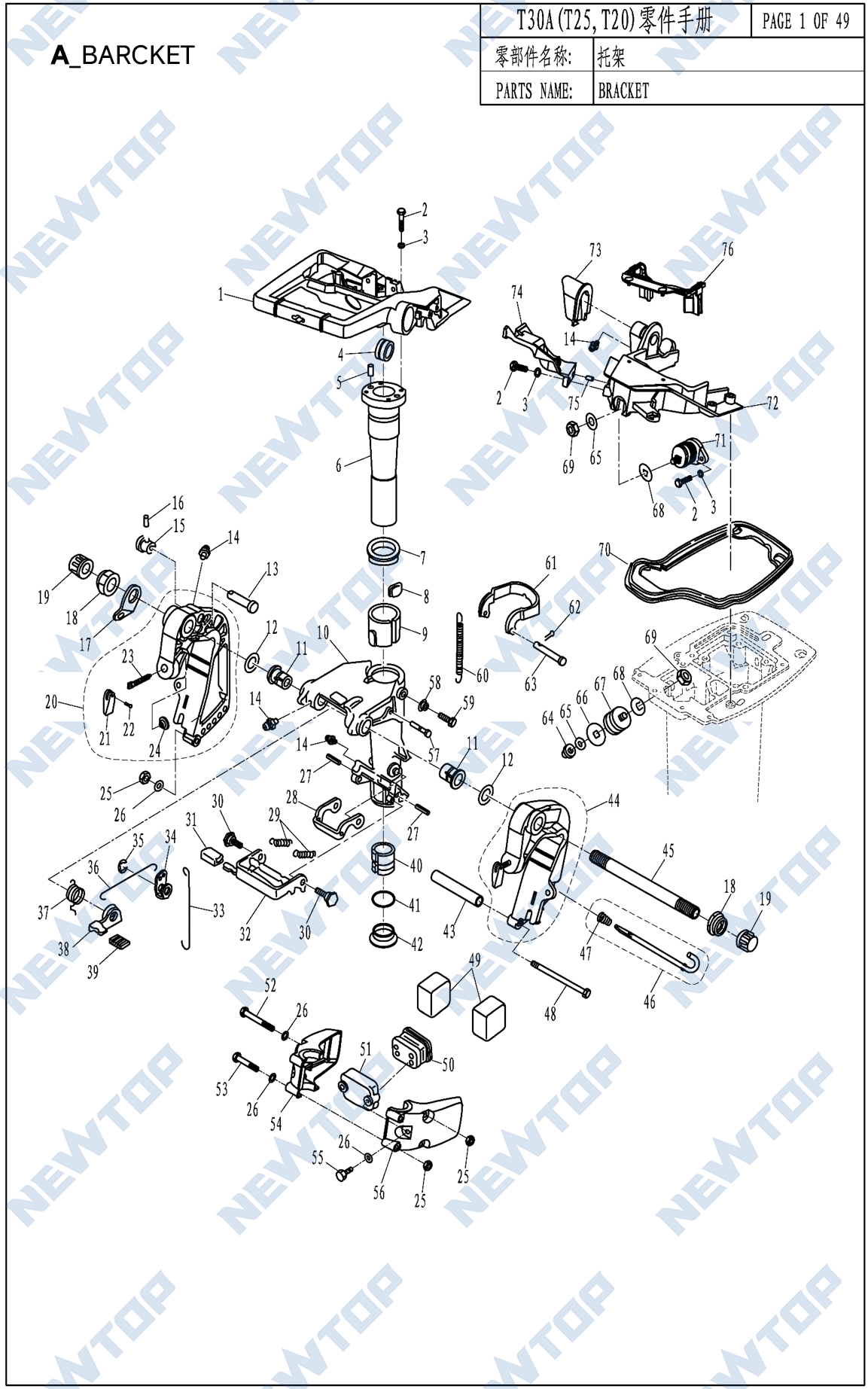

| A1 | BRACKET, HELM |
|---|---|
| A2 | BOLT GB/T9074.14-M6x20 |
| A3 | WASHER GB/T97.1-6 |
| A4 | RUBBER RING, BRACKET |
| A5 | PIN 8x12 |
| A6 | SHAFT, HELM BRACKET |
| A7 | WASHER, ROTARY BRACKET |
| A8 | PLATE, LOCK |
| A9 | BUSH, ROTARY BRACKET |
| A10 | BRACKET, ROTARY |
| A11 | BUSH, ROTARY BRACKET |
| A12 | WASHER |
| A13 | LIMITED SHAFT, TILT |
| A14 | NIPPLE, GREASE JB/T9740.1-M6 |
| A15 | LIMITING HANDLE, TILT |
| A16 | PIN GB/T879.2-3x16 |
| A17 | PLATE, TWO HOLE |
| A18 | NUT, SELF-LOCKING |
| A19 | PLASTIC NUT |
| A20 | RIGHT CLAMP BRACKET ASSY |
| A21 | HANDLE, CLAMP |
| A22 | RIVET, CLAMP HANDLE |
| A23 | SCREW, CLAMP |
| A24 | CLAMP PLATE |
| A25 | NUT GB/T6170-M8 |
| A26 | WAHSER GB/T97.1-8 |
| A27 | PIN GB/T879.1-4x38 |
| A28 | INNER FRAME, LOCKER HANDLE |
| A29 | SPRING, SUPPORT |
| A30 | SCREW, FLAT HEXAGON |
| A31 | JACKET, HANDLE |
| A32 | SUPPORT BRACKET ASSY |
| A33 | PULL ROD, INNER FRAME |
| A34 | BRACKET, PULL ROD |
| A35 | CIRCLIP GB/T896-5 |
| A36 | SPRING, PULL ROD |
| A37 | WREST SPRING |
| A38 | LOCKING HANDLE |
| A39 | JACKET, LOCKING HANDLE |
| A40 | BUSH, ROTARY BRACKET |
| A41 | O-RING |
| A42 | WASHER, ROTARY BRACKET |
| A43 | TUBE, BOLT |
| A44 | LEFT CLAMP BRACKET ASSY |
| A45 | DOUBLE-EDGED TUBE |
| A46 | LIMITATIVE ROD, TILT LOCK |
| A47 | CONICAL SPRING |
| A48 | BOLT GB/T5782-M8x155 |
| A49 | MOUNT DAMPER |
| A50 | DAMPER, FRONT |
| A51 | COVER, FRONT DAMPER |
| A52 | BOLT GB/T5782-M8x105 |
| A53 | BOLT GB/T5782-M8x70 |
| A54 | RIGHT ABSORBER COVER |
| A55 | BOLT GB/T9074.14-M8X25 |
| A56 | LEFT ABSORBER COVER |
| A57 | SHAFT, PULL ROD |
| A58 | SEAL, LOCK BOLT |
| A59 | BOLT GB/T5787-M6x25 |
| A60 | SPRING, OUTER FRAME |
| A61 | FRAME ASSY, LOCKED HANDLE |
| A62 | COTTER PIN 2x12 |
| A63 | SHAFT, LOCKED HANDLE |
| A64 | COVER NUT GB/T923-M10x1.25 |
| A65 | WASHER GB/T97.1-10 |
| A66 | GASKET A, ABSORBER |
| A67 | ABSORBER ASSY |
| A68 | GASKET B, ABSORBER |
| A69 | NUT M10x1.25 |
| A70 | SEAL, UPPER CASING |
| A71 | ABSORBER, SHIFT ROD BRACKET |
| A72 | BRACKET, SHIFT ROD |
| A73 | RUBBER RING, SHIFT HANDLE |
| A74 | BRACKET, BOTTOM COWLING |
| A75 | PIN 6x12 |
| A76 | GASKET, SHIFT ROD BRACKET |

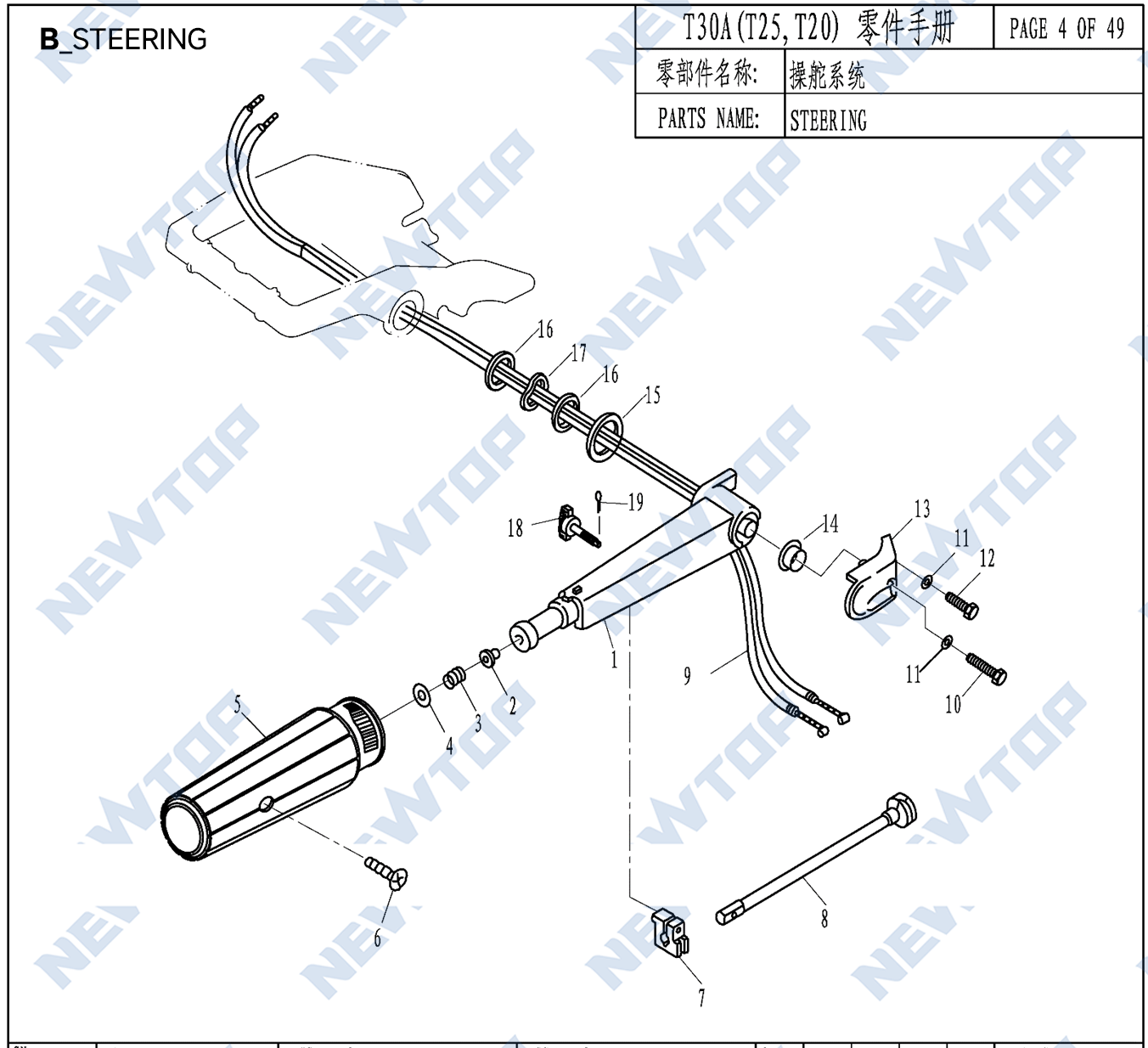

| B1 | TILLER HANDLE |
| B2 | BUSH |
| B3 | SPRING |
| B4 | WASHER GB/T848-10 |
| B5 | GRIP ASSY, TILLER HANDLE |
| B6 | SCREW GB/T820-M5x25 |
| B7 | FRICTION, TILLER HANDLE |
| B8 | THROTTLE LEVER ASSY |
| B9 | THROTTLE CABLE ASSY |
| B10 | BOLT GB/T5782-M6x50 |
| B11 | WASHER GB/T97.1-6 |
| B12 | BOLT GB/T9074.14-M6X20 |
| B13 | COVER, TILLER HANDLE |
| B14 | DAMPER, HANDLE |
| B15 | BUSH, HANDLE |
| B16 | WAVE WAHSER |
| B17 | WAVE WASHER |
| B18 | BOLT, FRICTION ADJUSTING |
| B19 | COTTER PIN GB/T91-1.6x12 |
| B20 | TILLER HANDLE ASSY |

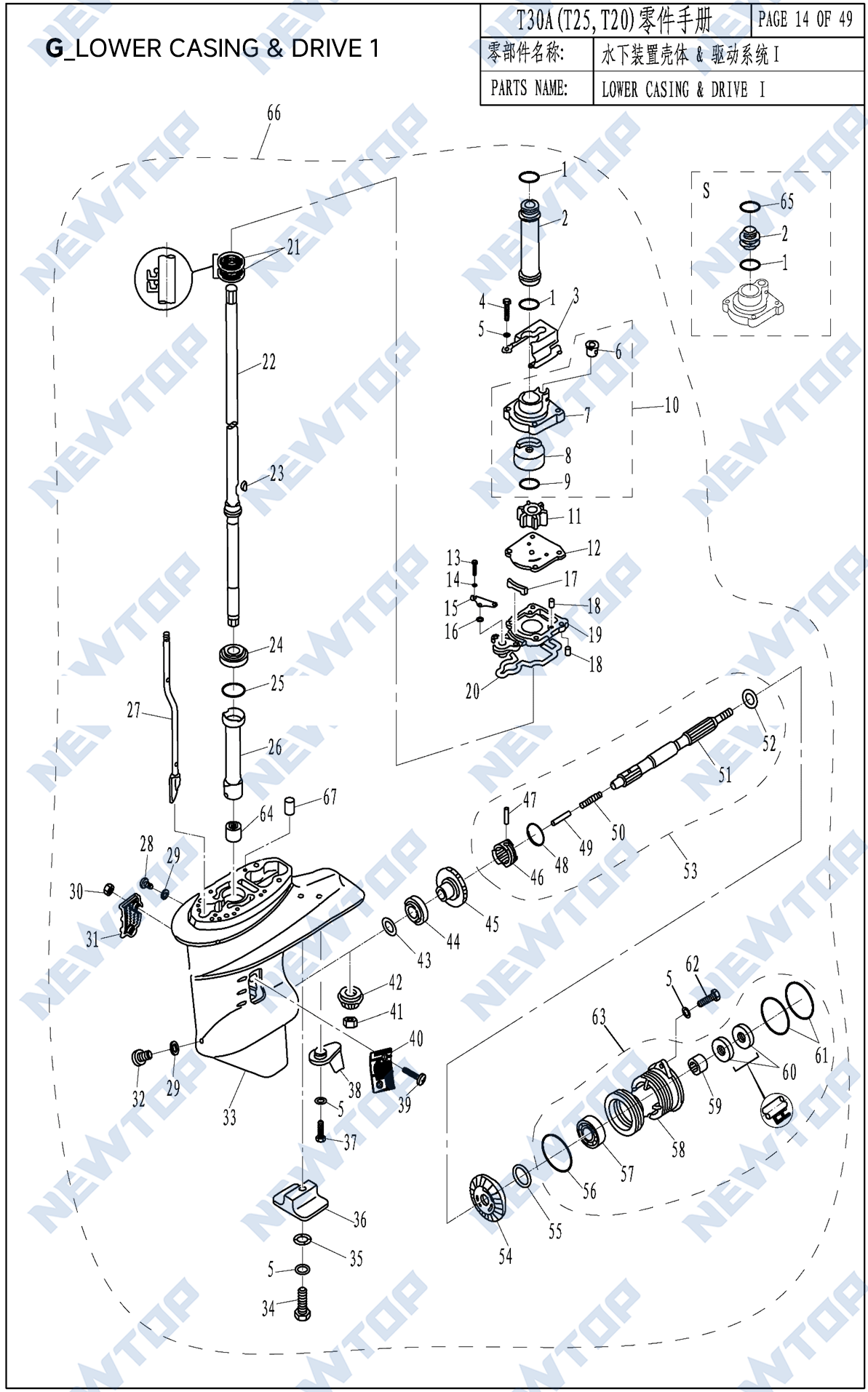

| G1 | O-RING GB/T3452.1-25.8x2.65 |
| G2 | BUSH, DRIVE SHAFT L |
| BUSH, DRIVE SHAFT S | |
| G3 | FIXED PLATE, WATER PUMP |
| G4 | BOLT GB/T5782-M6x40 |
| G5 | WASHER GB/T97.1-6 |
| G6 | SEAL, WATER TUBE |
| G7 | HOUSING, WATER PUMP |
| G8 | INSERT COVER, WATER PUMP |
| G9 | O-RING |
| G10 | HOUSING ASSY, WATER PUMP |
| G11 | IMPELLER ASSY |
| G12 | OUTER PLATE |
| G13 | BOLT GB/T9074.14-M6X25 |
| G14 | WASHER GB/T97.1-6 |
| G15 | PLATE, O-RING |
| G16 | O-RING |
| G17 | WATER SEAL |
| G18 | PIN 4x10 |
| G19 | BASE, DRIVE SHAFT |
| G20 | SEAL RING |
| G21 | OIL SEAL 22x36x6 |
| G22 | DRIVE SHAFT ASSY L |
| DRIVE SHAFT ASSY S | |
| G23 | WOODRUFF KEY |
| G24 | ROLLER BEARING HR32004XJ |
| G25 | SHIM T:0.70mm |
| SHIM T:1.00mm | |
| SHIM T:1.10mm | |
| SHIM T:1.20mm | |
| SHIM T:1.30mm | |
| SHIM T:1.40mm | |
| SHIM T:1.50mm | |
| SHIM T:1.60mm | |
| G26 | BUSH, NYLON |
| G27 | SHIFT CAM SHAFT ASSY L |
| SHIFT CAM SHAFT ASSY S | |
| G28 | SCREW PLUG |
| G29 | GASKET, SCREW PLUG |
| G30 | LOCK NUT GB/T889.1-M5 |
| G31 | WATER INLET B |
| G32 | BOLT, DRAIN |
| G33 | LOWER CASING |
| G34 | BOLT GB/T9074.14-M6x35 |
| G35 | LOCKING WASHING GB/T86.1-6 |
| G36 | ANODE |
| G37 | BOLT GB/T9074.14-M6x20 |
| G38 | COURSE TAB |
| G39 | SCREW GB/T820-M5x30 |
| G40 | WATER INLET A |
| G41 | NUT, PINION |
| G42 | PINION |
| G43 | SHIM T:1.00mm |
| SHIM T:1.10mm | |
| SHIM T:1.20mm | |
| SHIM T:1.30mm | |
| SHIM T:1.40mm | |
| G44 | ROLLER BEARING HR30205J |
| G45 | FORWARD GEAR ASSY |
| G46 | CLUTCH, DOG |
| G47 | PIN, CLUTCH |
| G48 | RING, CLUTCH |
| G49 | PLUNGER, SHIFT ROD |
| G50 | SPRING, CLUTCH |
| G51 | PROPELLER SHAFT |
| G52 | WASHER, REVERSE GEAR |
| G53 | PROPELLER SHAFT ASSY |
| G54 | GEAR, REVERSE |
| G55 | SHIM T:1.00mm |
| SHIM T:1.10mm | |
| SHIM T:1.20mm | |
| SHIM T:1.30mm | |
| G56 | O-RING A |
| G57 | BALL BEARING GB/T276-6006/P6 |
| G58 | COVER, LOWER CASING |
| G59 | NEEDLE BEARING GB/T290-HK2016 |
| G60 | OIL SEAL 20x34x6.5 |
| G61 | O-RING B |
| G62 | BOLT GB/T9074.14-M6x20 |
| G63 | COVER ASSY, LOWER CASING |
| G64 | NEEDLE BEARING GB/T290-F2020 |
| G65 | O-RING GB/T3452.1-21.2x1.8 |
| G66 | LOWER CASING ASSY L |
| LOWER CASING ASSY S | |
| G67 | PIN 6x12 |

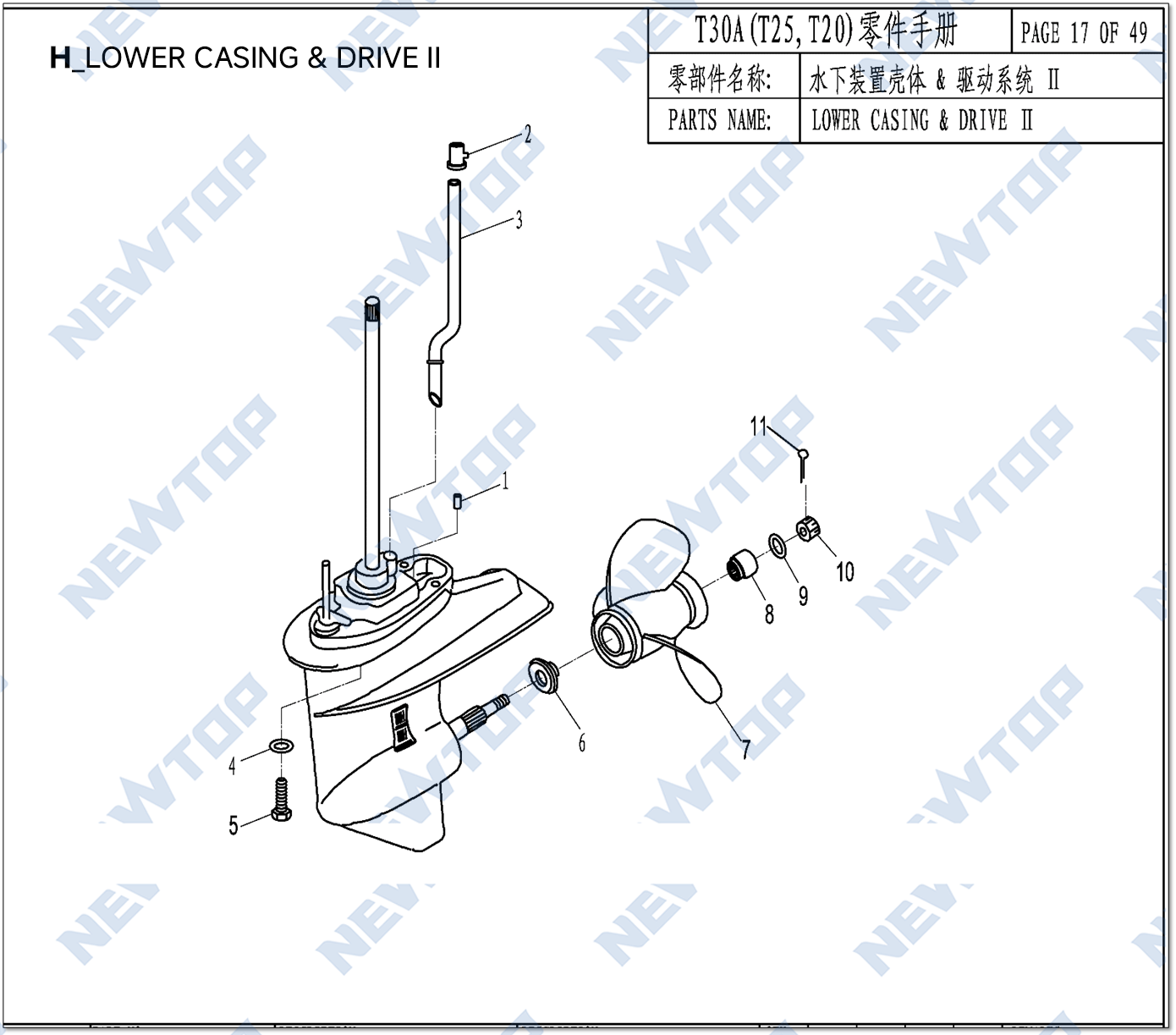

| H1 | PIN 6x12 |
| H2 | SEAL, WATER TUBE |
| H3 | WATER TUBE L |
| WATER TUBE S | |
| H4 | WASHER GB/T97.1-10 |
| H5 | BOLT M10x1.25x35 |
| H6 | SPACER, PROPELLER |
| H7 | PROPELLER ASSY 3-9 7/8"x12" |
| PROPELLER ASSY 3-9 7/8"x11 1/4" | |
| H8 | SPACER |
| H9 | WASHER GB/T97.1-14 |
| H10 | SLOTTED NUT |
| H11 | COTTER PIN GB/T91-3.2x25 |

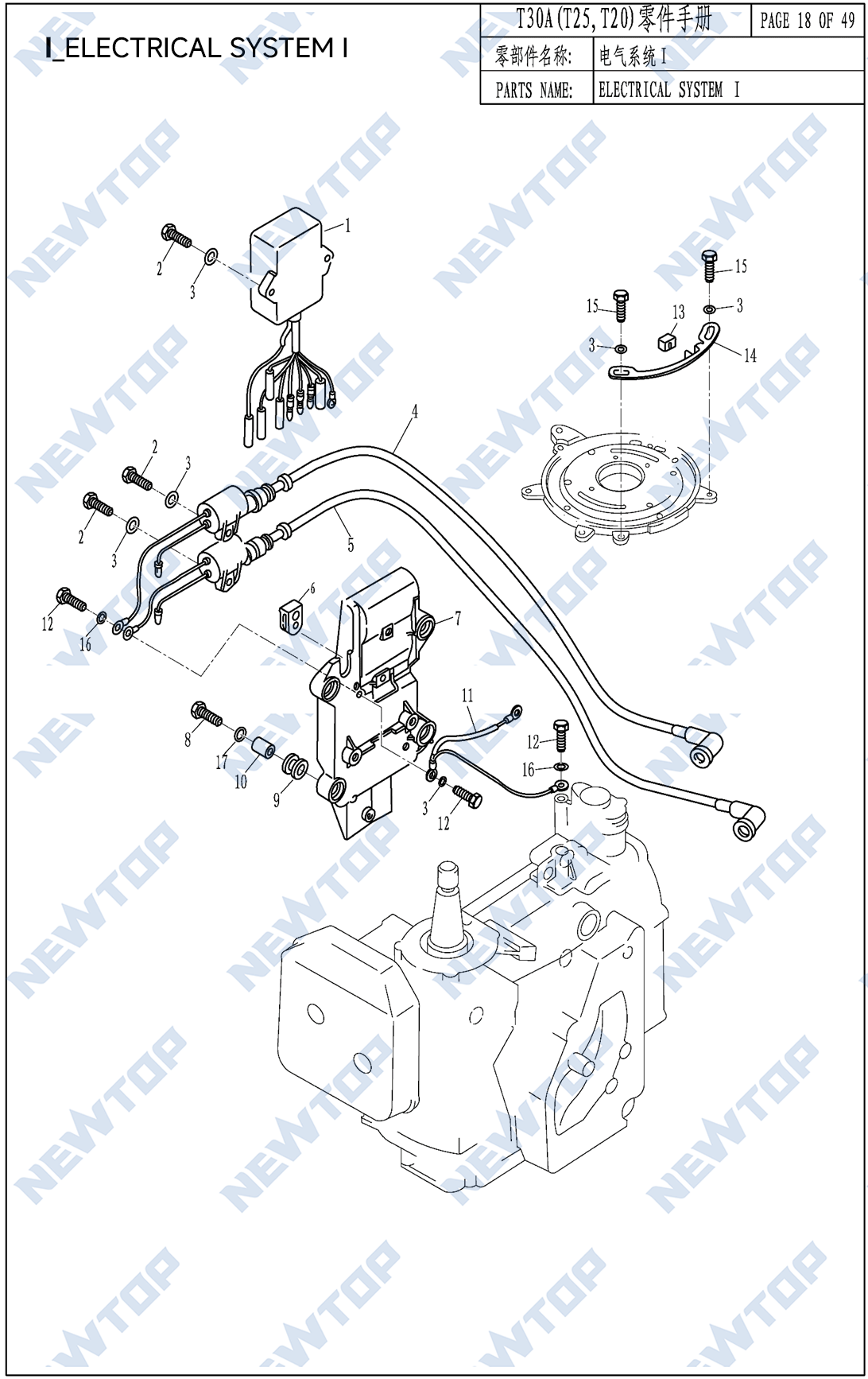

| I1 | CDI UNIT ASSY |
| I2 | BOLT GB/T9074.14-M6X20 |
| I3 | WASHER GB/T97.1-6 |
| I4 | IGNITION COIL ASSY A |
| I5 | IGNITION COIL ASSY B |
| I6 | CLAMP, IGNITION COIL |
| I7 | BRACKET, IGNITION COIL |
| I8 | BOLT GB/T9074.14-M6X30 |
| I9 | DAMPER, IGNITION COIL |
| I10 | BUSH, ABSORBER |
| I11 | EARTH WIRE |
| I12 | BOLT GB/T5783-M6x12 |
| I13 | BUSH, LIMITED PLATE |
| I14 | PLATE, STATOR COIL BASE |
| I15 | BOLT GB/T5783-M6x10 |
| I16 | WASHER, SPRING GB/T93-6 |
| I17 | BIG WASHER GB/T96-6 |

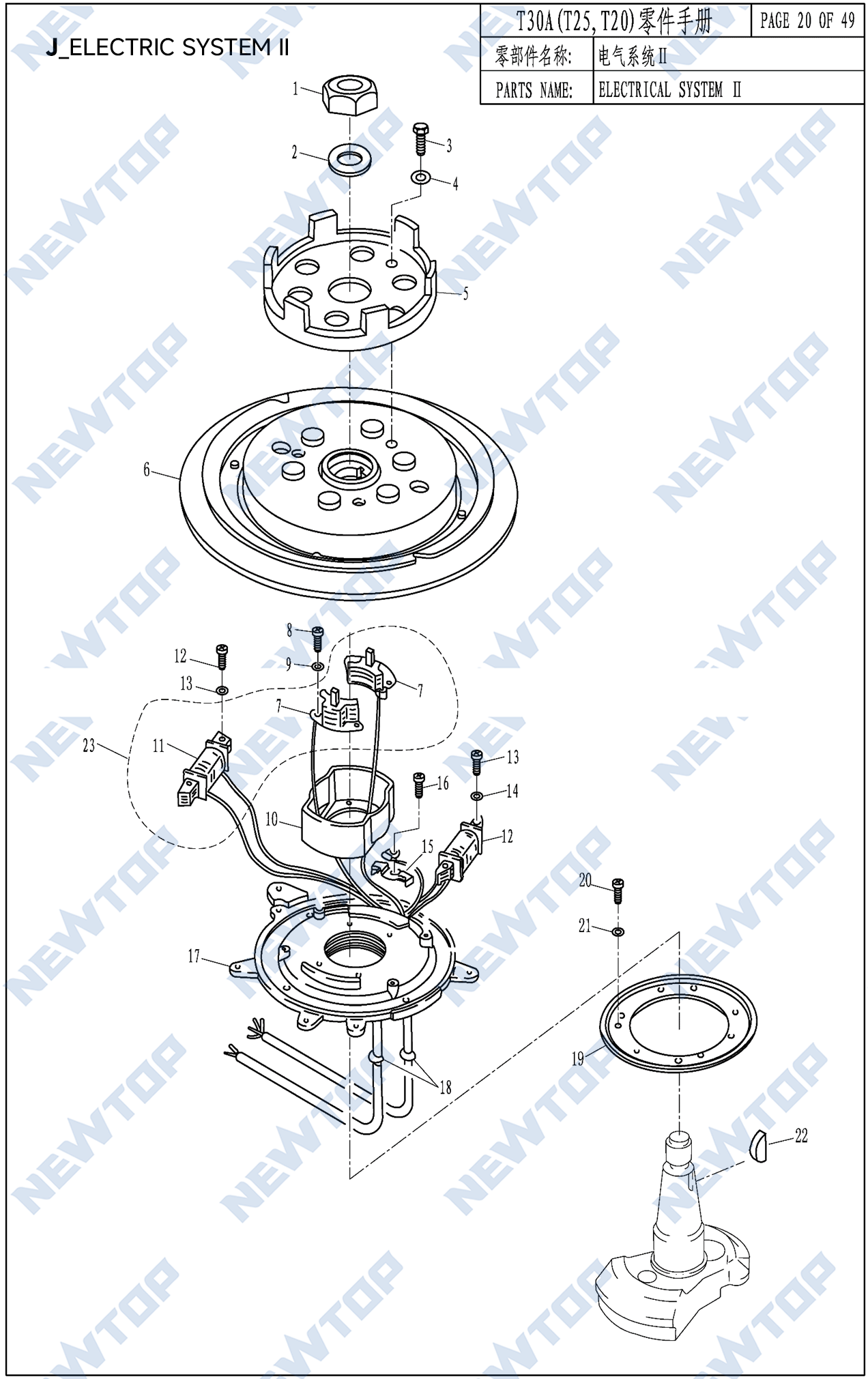

| J1 | NUT, FLY WHEEL |
| J2 | WASHER, FLYWHEEL NUT |
| J3 | BOLT GB/T5783-M8x14 |
| J4 | WAHSER GB/T97.1-8 |
| J5 | PULLEY, STARTER |
| J6 | FLYWHEEL ASSY |
| J7 | PULSER COIL ASSY |
| J8 | SCREW GB/T818-M4x12 |
| J9 | WASHER,SPRING GB/T93-4 |
| J10 | FIXED FRAME, PULSER COIL |
| J11 | STATOR COIL ASSY |
| J12 | LIGHTING COIL |
| J13 | SCREW GB/T818-M6x25 |
| J14 | WASHER, SPRING GB/T93-6 |
| J15 | PLATE, WIRE |
| J16 | SCREW GB/T818-M4x6 |
| J17 | BASE, STATOR COIL |
| J18 | JACKET, WIRE |
| J19 | PLATE, STATOR COIL BASE |
| J20 | BOLT GB/T5783-M6X14 |
| J21 | WASHER GB/T97.1-6 |
| J22 | WOODRUFF KEY, FLY WHEEL |
| J23 | LIGHT SUPPLY COIL |

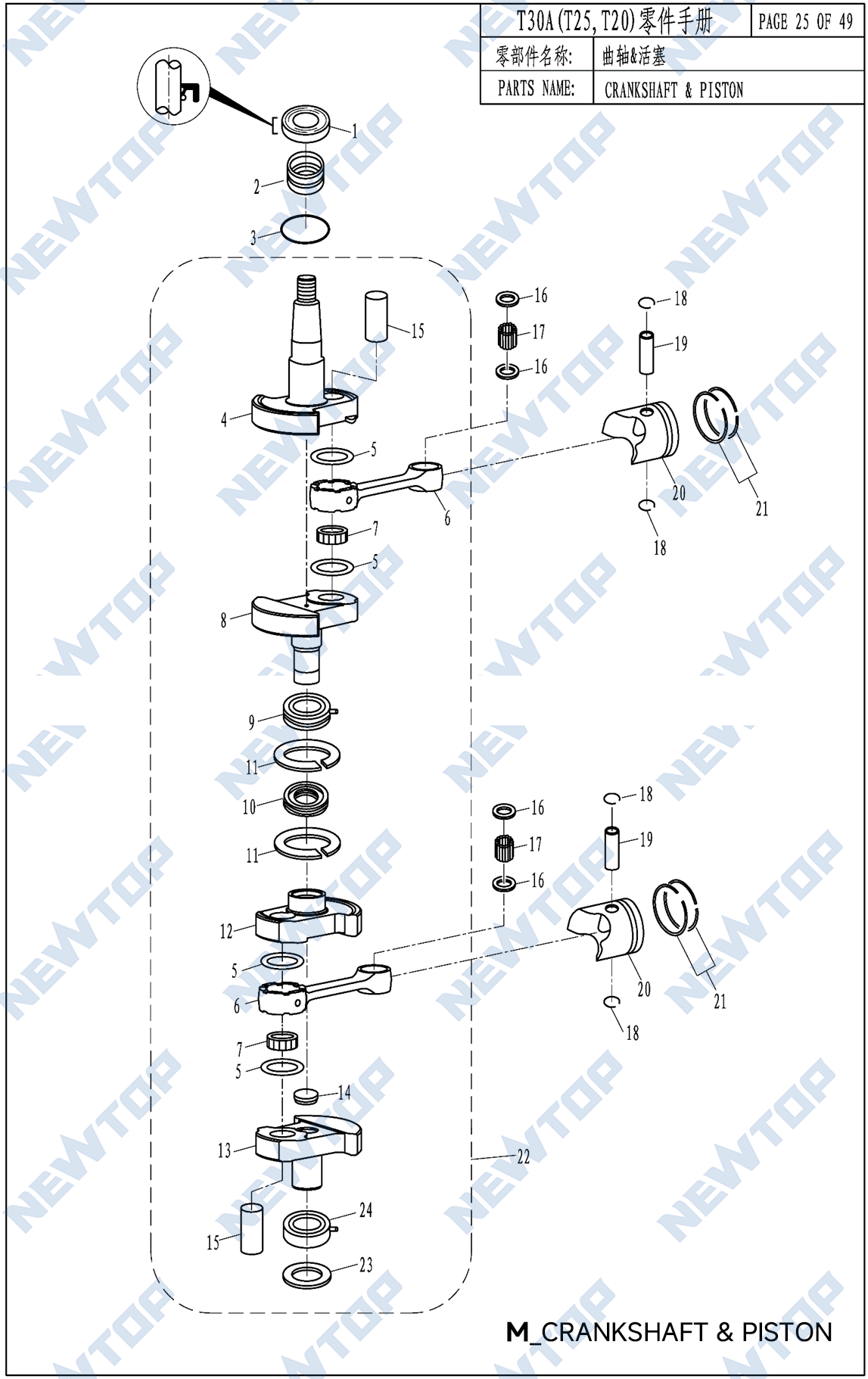

| M1 | OIL SEAL |
| M2 | NEEDLE BEARING WITH PIN PS365232 |
| M3 | O-RING 45x2.65 |
| M4 | BLOCK, SWING A |
| M5 | THRUST WASHER |
| M6 | CONNECTING ROD |
| M7 | NEEDLE BEARING |
| M8 | BLOCK, SWING B |
| M9 | BALL BEARING WITH PIN |
| M10 | SEAL RING |
| M11 | CIRCLIP |
| M12 | BLOCK, SWING C |
| M13 | BLOCK, SWING D |
| M14 | JAM, SWING BLOCK |
| M15 | PIN, CRANKSHAFT |
| M16 | WASHER, PISTON |
| M17 | NEEDLE BEARING 2x19.8 |
| M18 | CIRCLIP |
| M19 | PIN, PISTON |
| M20 | PISTON |
| M21 | PISTON RING ASSY |
| M22 | CRANKSHAFT ROD ASSY |
| M23 | FIXED WASHER, CRANKSHAFT |
| M24 | BALL BEARING WITH PIN |

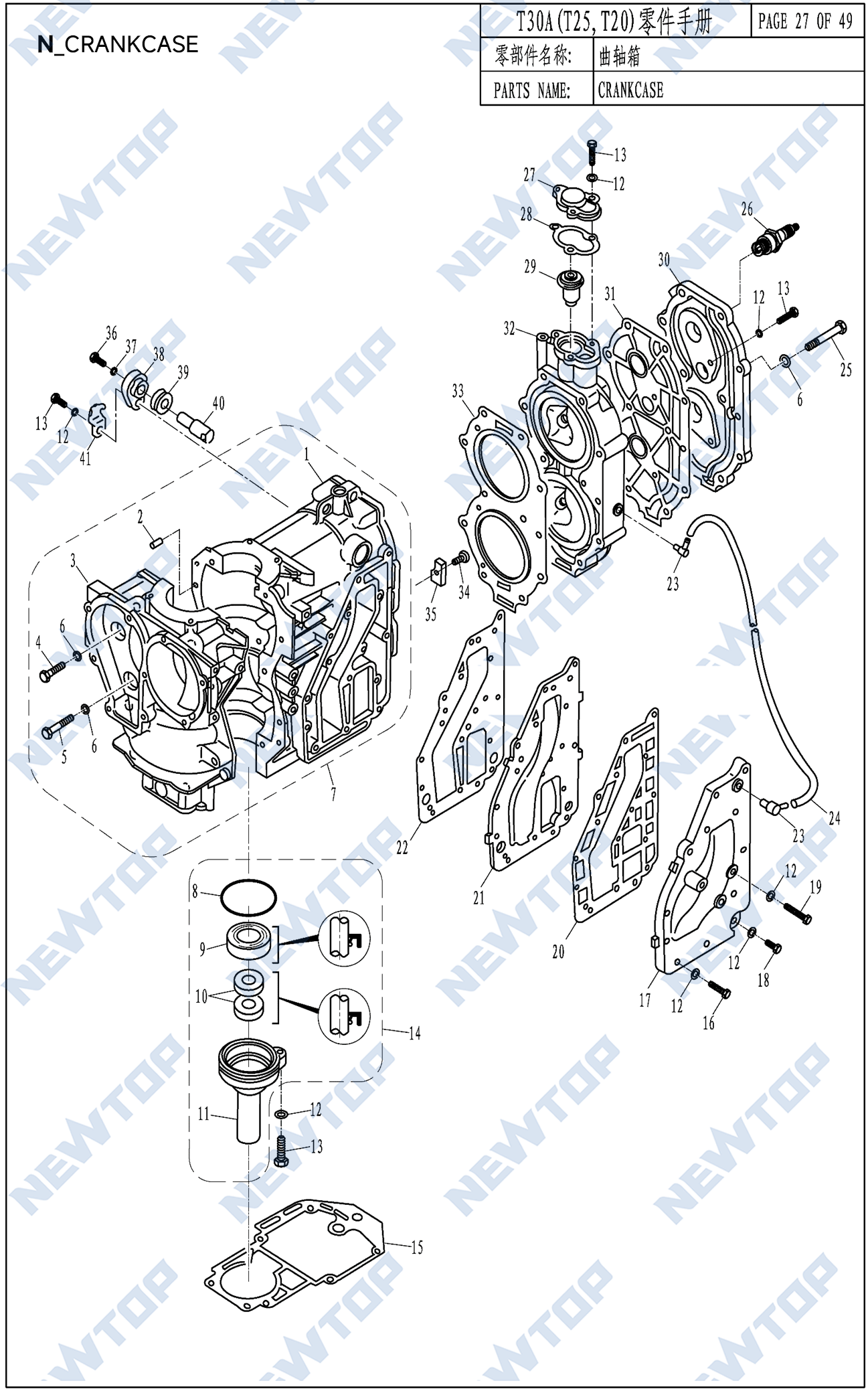

| N1 | CYLINDER CASE |
| N2 | PIN 6x12 |
| N3 | CRANKCASE |
| N4 | BOLT M8x60 |
| N5 | BOLT M8x45 |
| N6 | WAHSER GB/T97.1-8 |
| N7 | CRANKCASE ASSY |
| N8 | O-RING A |
| N9 | OIL SEAL 25x48x8 |
| N10 | OIL SEAL 16x30x6 |
| N11 | CASING, OIL SEAL |
| N12 | WASHER GB/T97.1-6 |
| N13 | BOLT GB/T9074.14-M6x20 |
| N14 | OIL SEAL CASING ASSY |
| N15 | GASKET, ENGINE |
| N16 | BOLT GB/T9074.14-M6x30 |
| N17 | OUTER COVER, EXHAUST |
| N18 | BOLT GB/T9074.14-M6x25 |
| N19 | BOLT GB/T5782-M6x50 |
| N20 | GASKET, OUTER COVER |
| N21 | INNER COVER, EXHAUST |
| N22 | GASKET, INNER COVER |
| N23 | PIPE, JOINT |
| N24 | HOSE 10x5x106 |
| N25 | BOLT M8x65 |
| N26 | SPARK PLUG BPR7HS |
| N27 | COVER, THERMOSTAT |
| N28 | GASKET, THERMOSTAT |
| N29 | THERMOSTAT |
| N30 | OUTER COVER, CYLINDER |
| N31 | GASKET, CYLINDER COVER |
| N32 | CYLINDER COVER |
| N33 | GASKET, CYLINDER HEAD |
| N34 | SCREW GB/T819.1-M6x20 |
| N35 | ANODE, CRANKCASE |
| N36 | SCREW GB/T818-M5x12 |
| N37 | WASHER GB/T97.1-5 |
| N38 | PLATE, ANODE |
| N39 | SEAL, ANODE |
| N40 | ANODE, CRANKCASE |
| N41 | PLATE, ANODE |
