The NEWTOP Sprayer Parts Set offers a comprehensive range of high-quality replacement components for NTS768 gasoline knapsack sprayers. Each part—from cylinders, crankshafts, pistons, and mufflers to fuel tanks, hoses, and nozzle assemblies—is carefully designed to ensure optimal compatibility and performance.
With precision machining and strict tolerance control, the engine assembly provides smooth combustion and stable output. The fuel system components are built to maintain consistent flow and prevent clogging, while the sprayer gun assembly delivers uniform mist distribution for improved efficiency.
Built by a trusted outdoor power equipment company, NEWTOP supplies reliable solutions for garden machinery suppliers, outdoor power equipment dealers, and maintenance professionals seeking a Sprayer Parts Set that ensures durability, precision, and long-term operational stability.
| A-1 | Screw | F-20 | Throttle Cable |
|---|---|---|---|
| A-2 | Heat Shield | F-21 | Piston Pump |
| A-3 | Screw | F-22 | Circlip |
| A-4 | Large Box | F-23 | Water Inlet Pipe |
| A-5 | Crankcase Gasket | F-24 | Circlip |
| A-6 | Cylindrical Pin | G-1 | High Pressure Pipe 1.5M |
| A-7 | Bearing | G-2 | Set Of Nozzle |
| A-8 | Oil Seal | G-3 | Three Hole Nozzle |
| A-9 | Half Round Key | G-4 | Boom Combination |
| A-10 | Crankshaft Connecting Rod Assembly | G-5 | Ball Valve Switch |
| A-11 | Bearing | G-6 | Grip O-Ring |
| A-12 | Oil Seal | G-7 | Handle |
| A-13 | Small Box | G-8 | 90cm Straight Gun |
| A-14 | Start Dial Assembly | G-9 | 60cm Straight Gun |
| A-15 | Screw | G-10 | Nozzle,2 Head Metal |
| A-16 | Screw Flat Washers | G-11 | Nozzle,4 Head Ring |
| A-17 | Starter Assembly | G-12 | Nozzle.3 Head Metal |
| A-18 | Sheave (Type D Normal Start) | G-13 | Nozzle,2 Head Plastic |
| A-19 | Start Coil Spring | G-14 | Switch O-Ring |

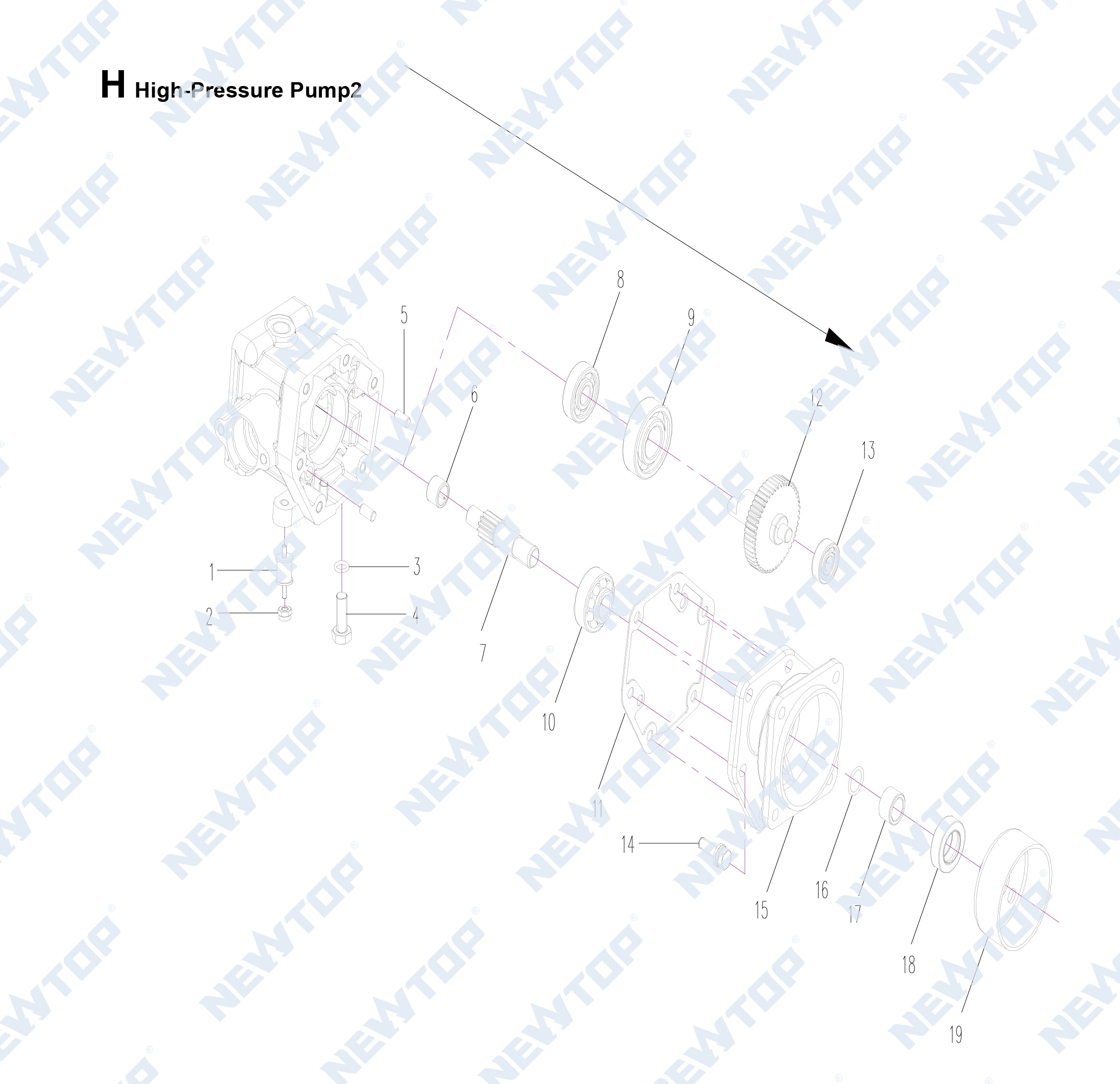

| A-20 | Start Hood | H-1 | Shock-Absorbing Foot |
| A-21 | Screw | H-2 | With Plastic self-Locking Nut |
| A-22 | Screw | H-3 | O-Ring |
| A-23 | Piston Combination | H-4 | Oil Drain Screw |
| A-24 | Piston Ring | H-5 | Cylindrical Pin |
| A-25 | Piston | H-6 | Needle Roller Bearings |
| A-26 | Piston Pin | H-7 | Gear Shaft (Small) |
| A-27 | Needle Roller Bearing | H-8 | Bearing |
| A-28 | Piston Circlip | H-9 | Bearing |
| A-29 | Gasket Assembly | H-10 | Bearing |

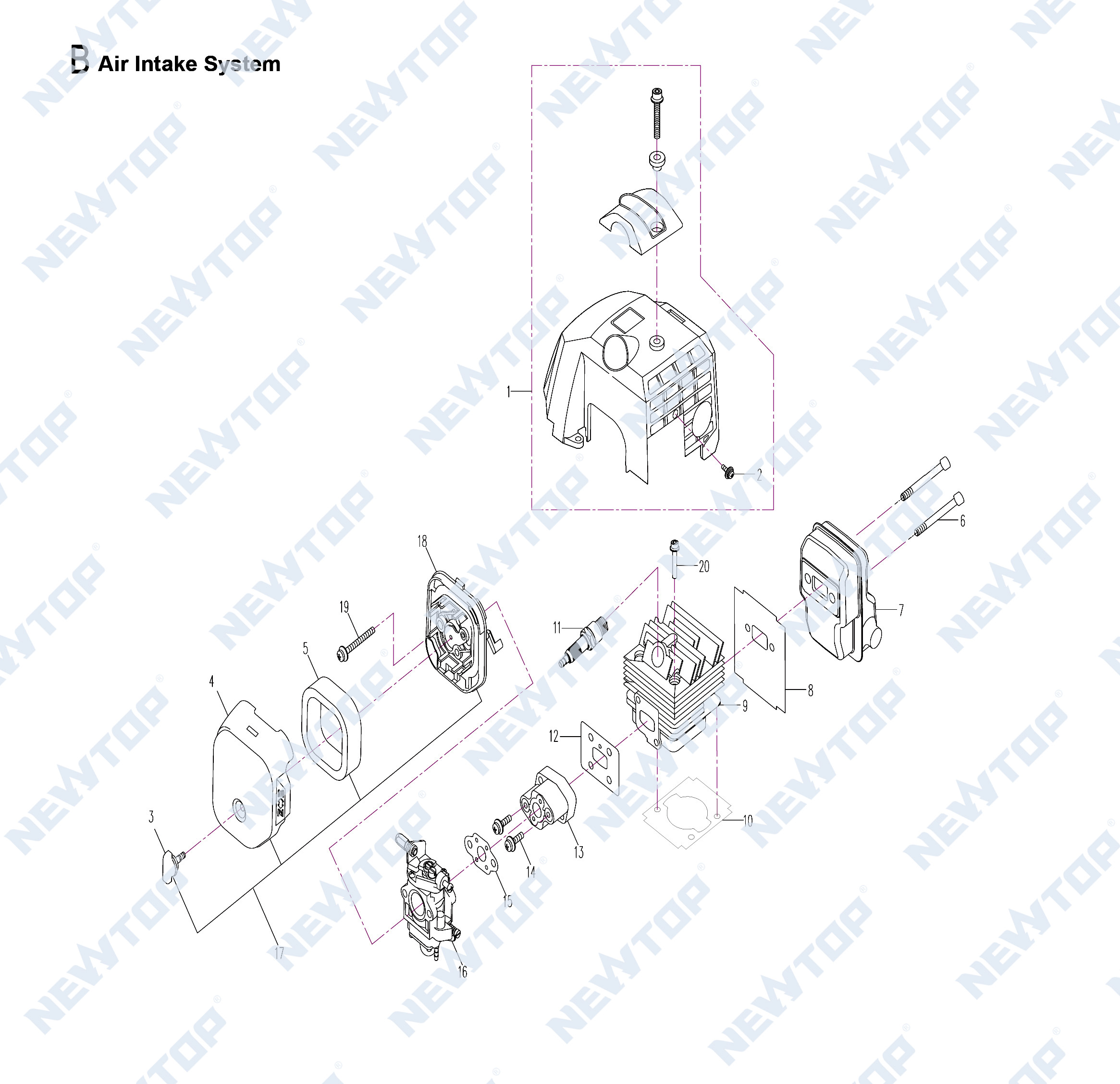

| B-1 | Cylinder Cover Assembly | H-11 | Hexagonal Sealing Paper Pad |
| B-2 | Screw | H-12 | Eccentric Gear Shaft (Large) |
| B-3 | Air Filter Cover Knob | H-13 | Bearing |
| B-4 | Air Filter Cover | H-14 | Hexagon Bolt |
| B-5 | Air Filter Cotton | H-15 | Gearbox Cover |
| B-6 | Screw | H-16 | 0-Ring |
| B-7 | Silencer | H-17 | Plunger Sleeve (Seal Sleeve) |
| B-8 | Muffler Gasket | H-18 | Sealing Sleeve Oil Seal |
| B-9 | Cylinder | H-19 | Clutch Drum |

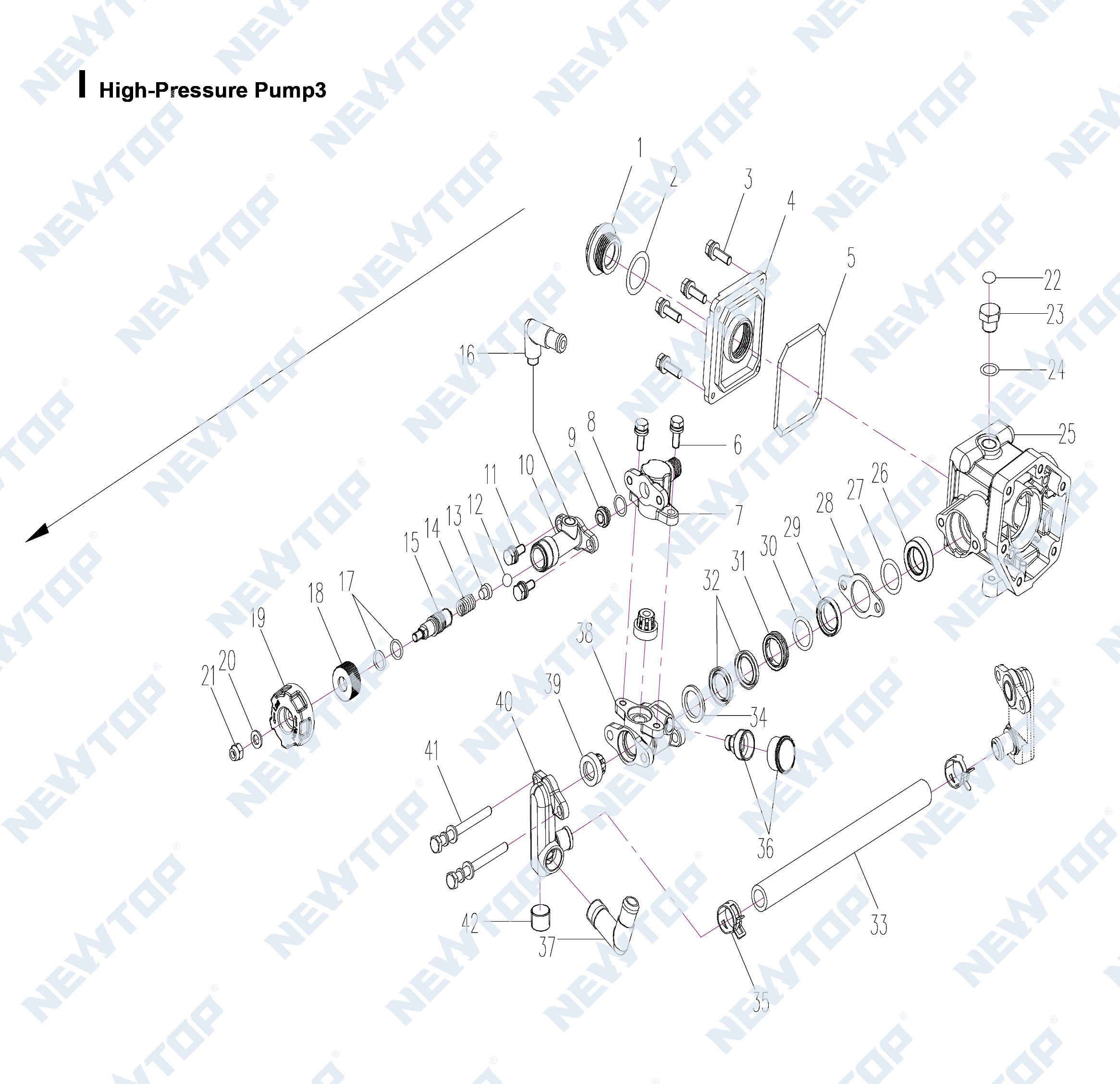

| B-10 | Cylinder Gasket | I-1 | Cross Hexagon Bolt |
| B-11 | Spark Plug | I-2 | Gasket |
| B-12 | Intake Pipe Gasket | I-3 | Gasket |
| B-13 | Intake Pipe | I-4 | Gearbox Cover |
| B-14 | Screw | I-5 | O-Ring |
| B-15 | Carburetor Gasket | I-6 | Cross Hexagon Bolt |
| B-16 | Carburetor | I-7 | Single Head Of Water Outlet |
| B-17 | Air Filter Assembly | I-8 | O-Ring |
| B-18 | Air Filter Inner Cover | I-9 | Seat (Stainless steel) |
| B-19 | Screw | I-10 | Regulator Body (copper) |
| B-20 | Screw | I-11 | Cross Hexagon Bolt |
| C-1 | Flywheel Assembly | I-12 | Steel Ball |
| C-2 | Nut | I-13 | Spring Holder |
| C-3 | Igniter Assembly | I-14 | Pressure Regulating Spring |
| C-4 | Screw | I-15 | Pressure Regulator Stem |
| C-5 | Clutch Gasket | I-16 | Return Water Connector |
| C-6 | Clutch | I-17 | O-Ring |
| C-7 | Wave Washers | I-18 | Pressure Regulating Nut |
| C-8 | Screw Shaft | I-19 | Pressure Regulating Wheel |
| C-9 | Shell Aluminum Parts | I-20 | Flat Washers |
| C-10 | Screw | I-21 | Lock Nut |
| C-11 | Clutch Assembly | I-22 | Seal |

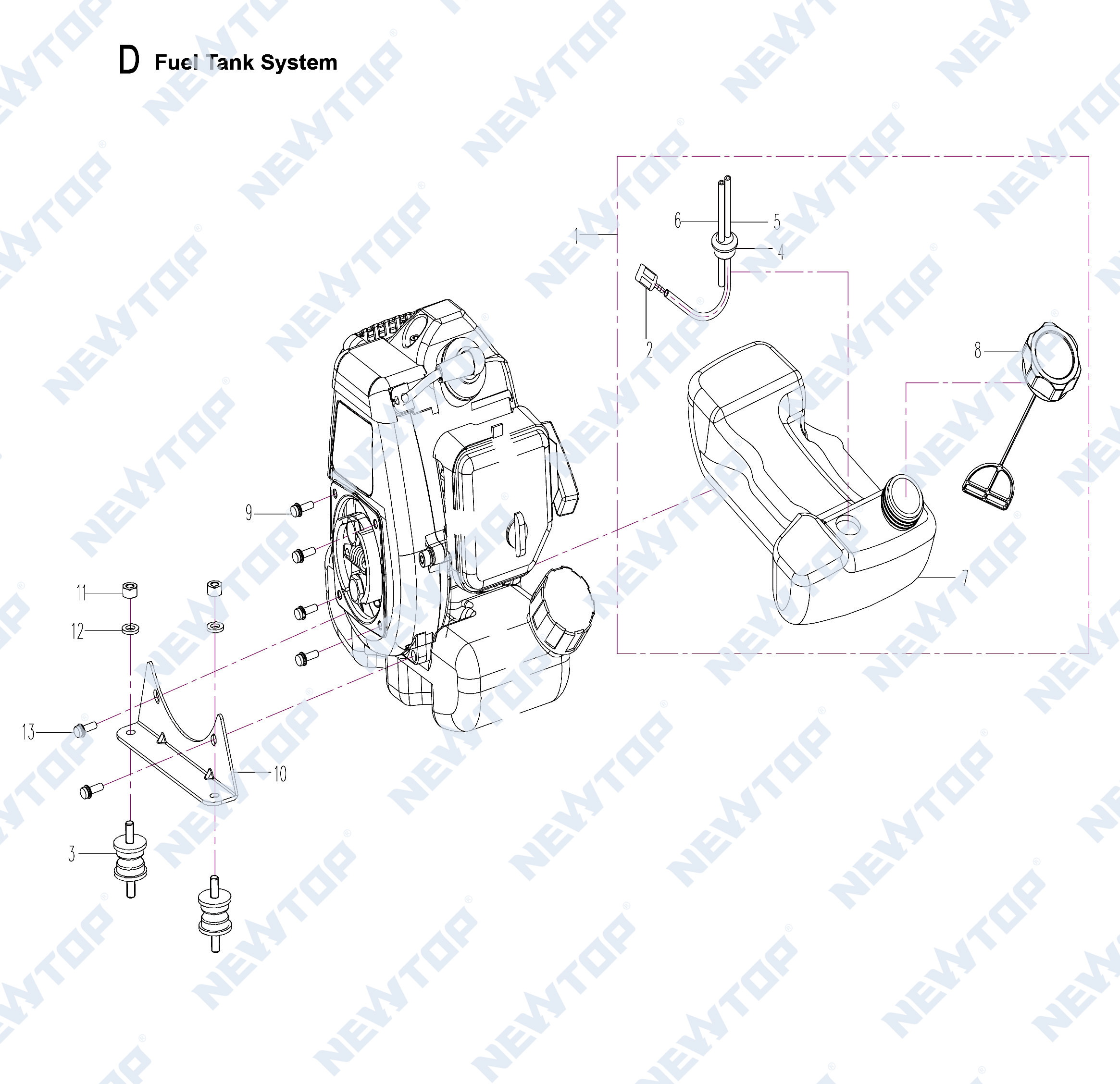

| D-1 | Oil Pot Assembly | I-23 | Oil screw |
| D-2 | Gasoline Filter | I-24 | O-Ring |
| D-3 | Shock-Absorbing Foot | I-25 | Gearpox seat |
| D-4 | Oil Tube Seat | I-26 | Plunger Oil seal |
| D-5 | Oil outlet | I-27 | 0-Ring |
| D-6 | Inlet Pipe | I-28 | Platen |
| D-7 | Oiler | I-29 | Gland |
| D-8 | Oil Pot Cover Assembly | I-30 | Adjustment Ring |
| D-9 | Screw | I-31 | Oil Ring |
| D-10 | Power Stand | I-32 | VType (Rubber) |
| D-11 | With Plastic Self-Locking Nut | I-33 | Black Rubber Hose |
| D-12 | Flat Washer | I-34 | Support Ring |
| D-13 | M5*22 | I-35 | Clamp (Circlip) |

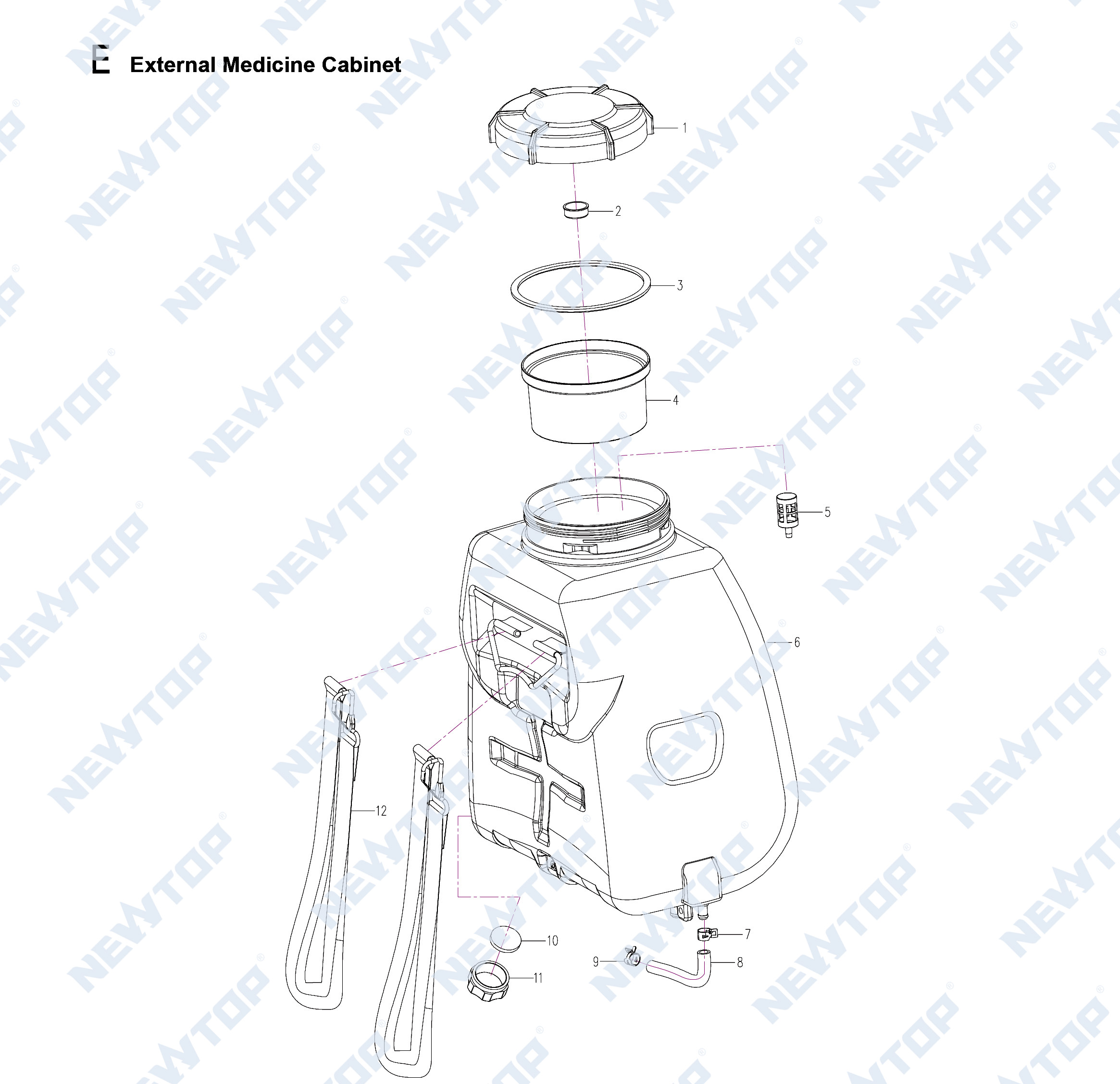

| E-1 | Medicine Bucket Lid | I-36 | Butter Cup |
| E-2 | Intake Plug | I-37 | Inlet Connector |
| E-3 | Medicine Bucket Lid seal | I-38 | Cylinder Single Head |
| E-4 | Inlet Filter | I-39 | Valve Assembly |
| E-5 | Outlet Filter | I-40 | Four-Way Double Head |
| E-6 | Medicine Keg | I-41 | Hexagon Bolt |
| E-7 | Circlip | I-42 | Plug |

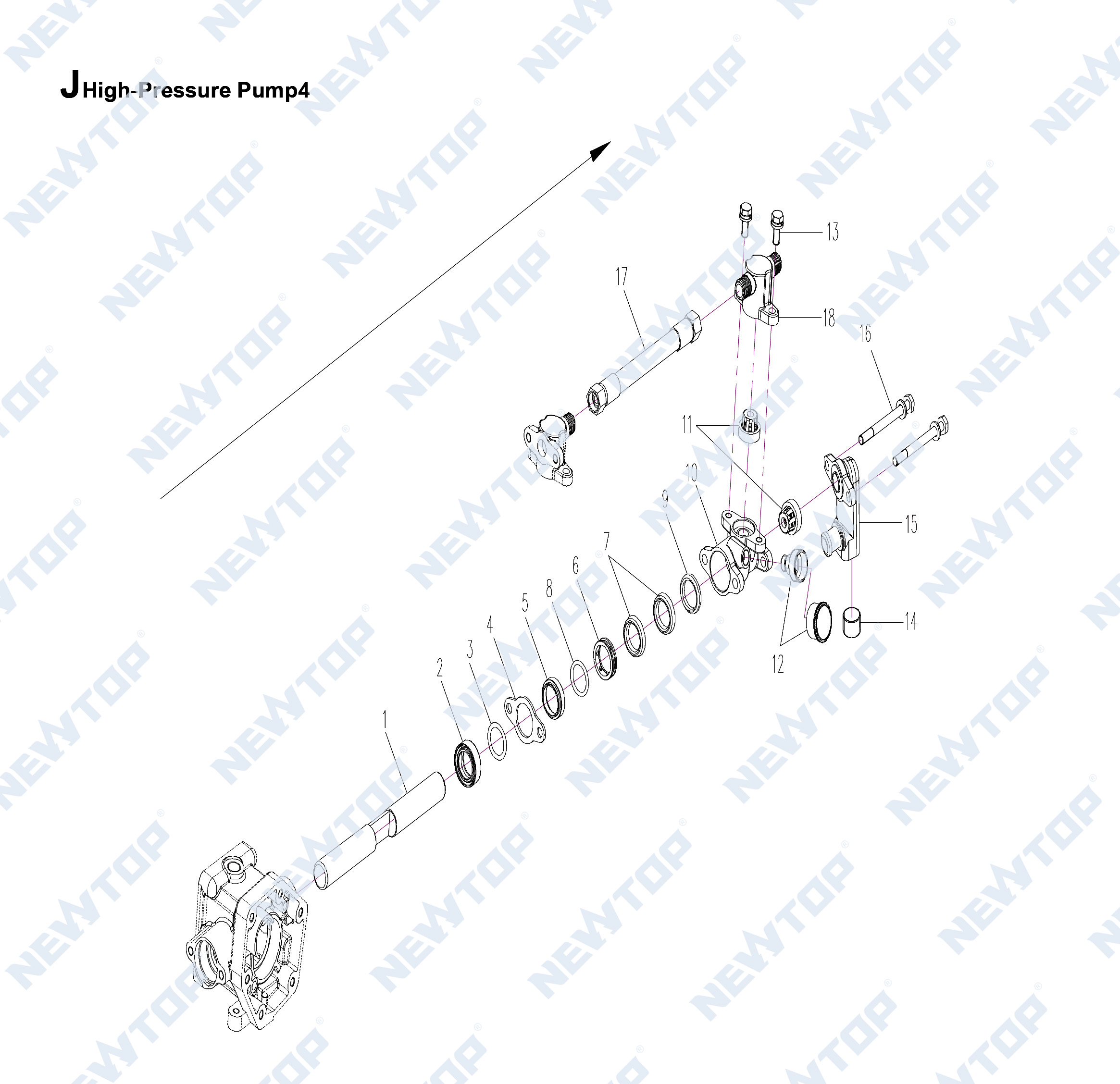

| E-8 | Return Pipe | J-1 | Plunger |
| E-9 | Circlip | J-2 | Plunger Oil seal |
| E-10 | Drain Cover Gasket | J-3 | O-Ring |
| E-11 | Drain Cover | J-4 | Platen |
| E-12 | Strap | J-5 | Gland (copper) |

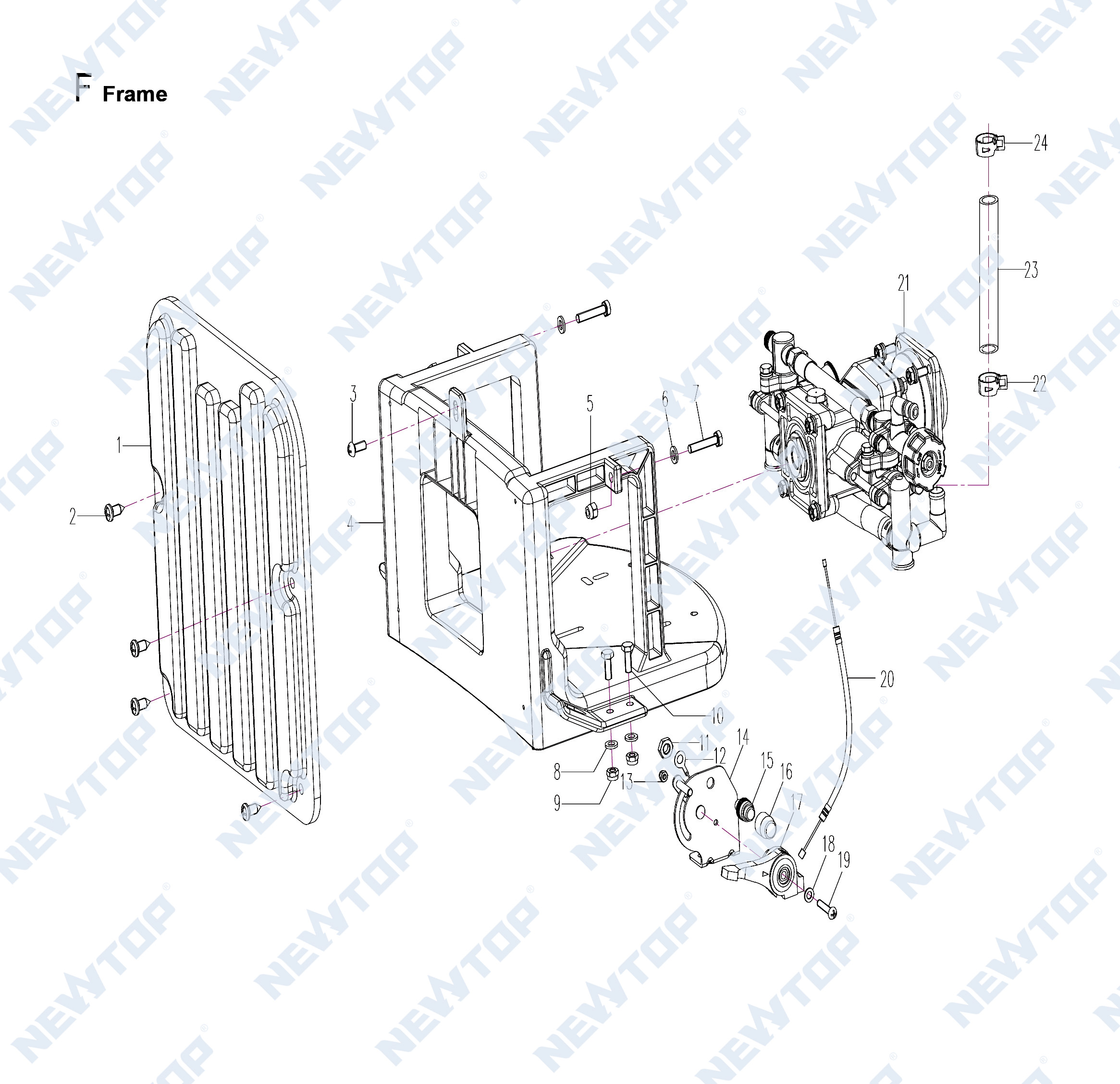

| F-1 | Back Pad | J-6 | Oil Ring (copper) |
| F-2 | Self-Tapping Screw | J-7 | VType (Rubber) |
| F-3 | Flat Head Screw | J-8 | Adjustment Ring |
| F-4 | Chassis | J-9 | Support Ring |
| F-5 | Self-Locking Nut | J-10 | Cylinder Double Head |
| F-6 | Flat Washer | J-11 | Valve Assembly |
| F-7 | Hexagon Head Bolt | J-12 | Butter Cup |
| F-8 | Flat washer | J-13 | Cross Hexagon Bolt |
| F-9 | Self-Locking Nut | J-14 | Plug |
| F-10 | Hexagon Head Bolt | J-15 | Four-Way Single Hole |
| F-11 | Kill Switch Nut | J-16 | Hexagon Bolt |
| F-12 | Flameout Switch Red wire | J-17 | Outlet Connection Pipe |
| F-13 | Self-Locking Nut | J-18 | Water Outlet Double Head |

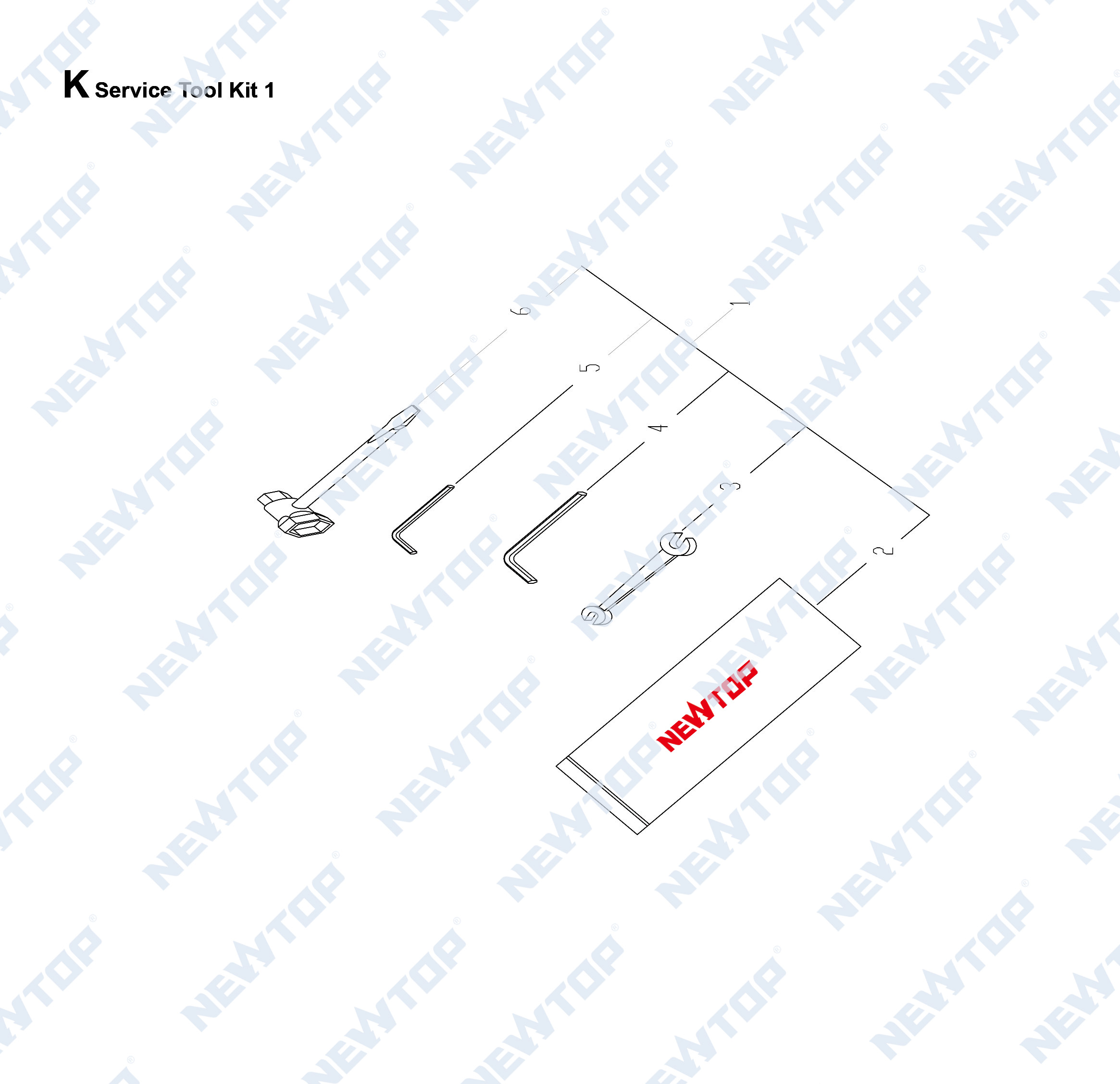

| F-14 | Throttle Cable Bracket | K-1 | Service Tool kit |
| F-15 | Flameout Switch | K-2 | Bag, Tool |
| F-16 | Flameout Switch Cover | K-3 | Spanner |
| F-17 | Throttle switch | K-4 | Hex Key |
| F-11-19 | Throttle Switch Assembly | K-5 | Hex Key |
| F-18 | Flat Washer | K-6 | Wrench |
| F-19 | Cross Pan Head Screw |
