The NEWTOP NTS423 Sprayer Parts Set provides complete coverage for your gasoline knapsack sprayer, offering essential components to keep your equipment running at peak efficiency. The engine assembly includes high-strength cylinders, gaskets, crankshafts, pistons, spark plugs, mufflers, and stators — all precisely manufactured to guarantee stable power output and smooth operation.
The fuel system assembly features tanks, tubes, and filters designed to maintain a clean and efficient fuel flow. The dusting and misting assembly includes impellers, nozzles, hoses, clips, and switches, ensuring fine atomization and consistent coverage. Each component is crafted with advanced production technology and strict quality control for long-term reliability.
As a trusted outdoor power equipment company, NEWTOP supports garden machinery suppliers and outdoor power equipment dealers worldwide with professional-grade Sprayer Parts Sets that enhance performance, extend service life, and simplify maintenance.

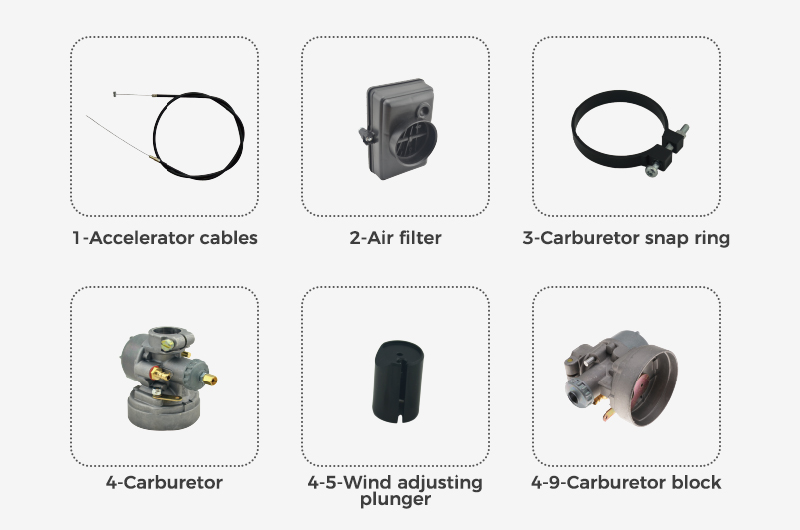

| 1 | Accelerograph Line | 42 | Inlet Plunger Nut |
|---|---|---|---|
| 2 | Carburetor Cover/Filter | 43 | Front Cover Of Fan Rind |
| 4 | Carburetor | 44 | Impeller (Fan) |
| 4(9) | Carburetor Block | 45 | Back Cover Of Fan Rind |
| 4(11) | Oil Dobber | 46 | Fan Rind Screw |
| Needle Valve | 47 | Fan Rind Support | |
| Carburetor Gasket | 48 | Syphon | |

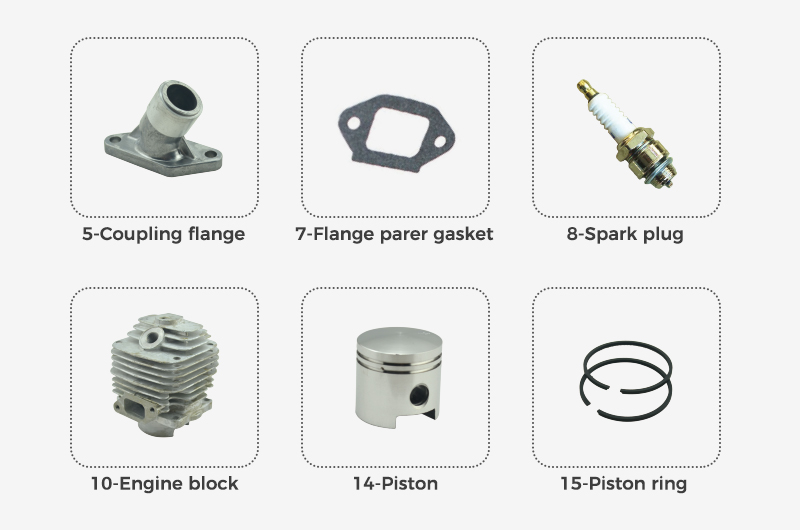

| 5 | Coupling Flange | 49 | Snap Ring Of Tube |
| 6 | Flange Adiabatic Washer | 50 | Tube |
| 7 | Flange Parer Gasket | 51 | Small Snap Ring Of Tube |
| 8 | Spark Plug | 52 | Water Pipe |
| 9 | Bolt For Engine Block | 53 | Inlet Of Water Pipe |
| 11 | Flange Bolt | 54 | Inlet Nut Of Water Pipe |
| 12 | Supprot For Engine Block | 55 | Water Valve |
| 13 | Paper Gasket For Engine Block | 56 | Pipe |
| 14 | Piston | 57 | Spout |
| 15 | Piston Ring | 58 | Spout |

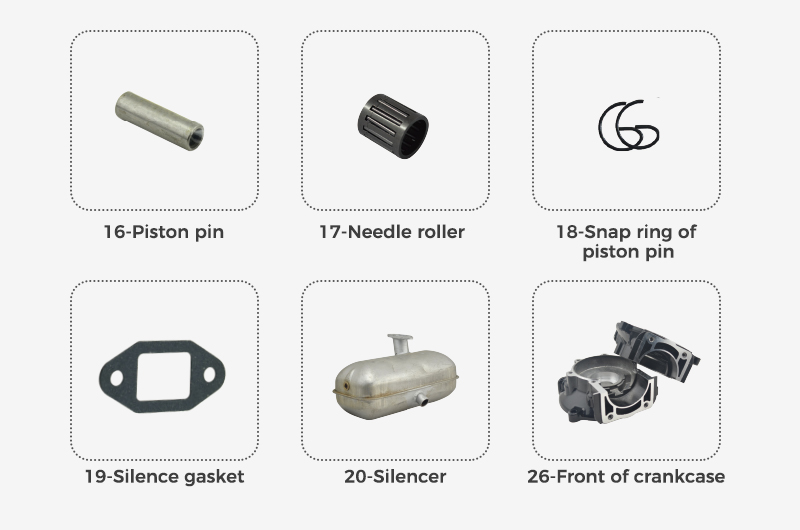

| 16 | Piston Pin | 59 | Cap Of Medicine Tank |
| 18 | Snap Ring Of Piston Pin | 60 | Cap Washer Of Medicine Tank |
| Cylinder Assy | 61 | Filter Gauze | |
| 17 | Neddle Roller/Top Bearing | 62 | Water Tank |
| 19 | Silencer Gasket | 63 | Drain Plub |
| 20 | Silencer | 64 | Washer Of Drain Plug |
| 21 | Silencer Cover | 65 | Inlet Plug |
| 22 | Silencer Srpport 1 | 66 | Drain Bolt |
| 23 | Silencer Srpport 2 | 67 | Gallus |
| 24 | Silencer Nut | 68 | Gallus Clasp |
| 25 | Silencer Bolt | 69 | Back Cushion |
| 26 | Front Of Crankcase | 70 | Clamp Of Back Cushion |

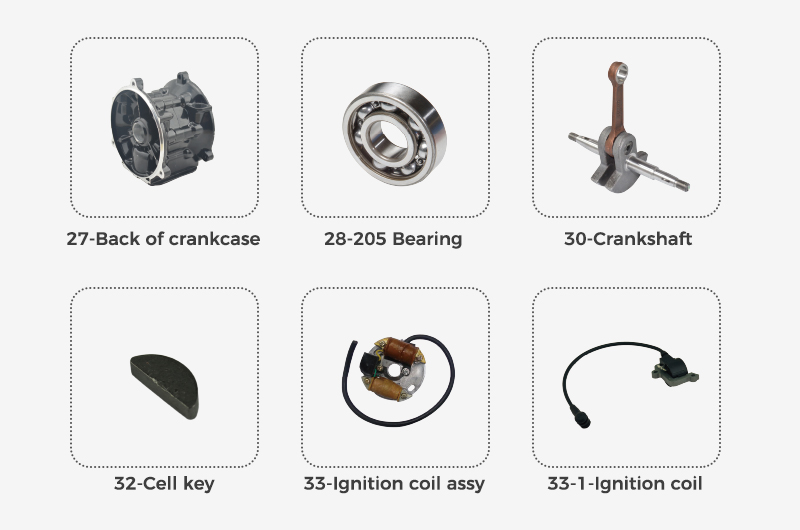

| 27 | Back Of Crankcase | 71 | Cap Of Fuel Tank |
| 30 | Cankshaft | 72 | Cap Washer Of Fuel Tank |
| 31 | Oil Seal | 73 | Fuel Tank |
| 32 | Cell Key | 74 | Cap Washer |
| 33(1) | Startor | 75 | Nut Of Oil Valve |

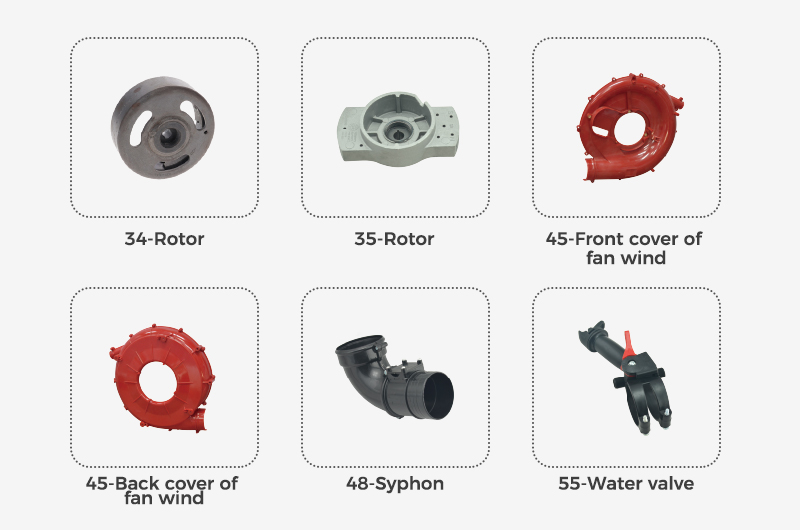

| 34(1) | Rotor/Flywheel | 76 | Oil Valve |
| 35 | Spring Of Pressure Cap | 77 | Oil Pipe |
| 36 | Pressure Cap | 78 | Plug Spanner/Spanner For Spark Plug |
| 39 | Starter Cover | Sarter Kit Jack Pin | |
| 40(1) | Starter | 423 Engine Parts of Sprayer | |
| 41 | Snap Ring Of Inlet Plunger |
