>H143/NTB143 Brush Cutter Parts Set for NEWTOP | Spare & Repair Components
The NEWTOP H143 / NTB143 Brush Cutter Parts Set delivers a complete range of high-quality replacement components to maintain or restore your brush cutter’s original performance. Each part—from the engine body to the gearbox—is manufactured under strict tolerance control, ensuring precise assembly and reduced vibration during operation.
The crankshaft housing and metal components are CNC-machined to maintain exact alignment and balance, while the reinforced nylon materials used in plastic covers and handles provide superior heat resistance and structural stability under long-term use.
Equipped with an Easy-Start ignition module and durable gearbox, the set allows users to achieve fast starts and steady torque output even under tough field conditions. The ergonomic U-shaped handle mount adds comfort and control, ideal for both professional landscapers and individual users.
With NEWTOP’s reputation for reliability, this brush cutter parts set is a trusted choice for those seeking high-performance outdoor power equipment for sale from reputable garden machinery suppliers and brush cutter manufacturers.
| A-1 | Shoe Block Bolt | A-46 | Flange Face Hexagon Socket Screws |
|---|---|---|---|
| A-2 | Wave Gasket | A-47 | Cylinder Cover |

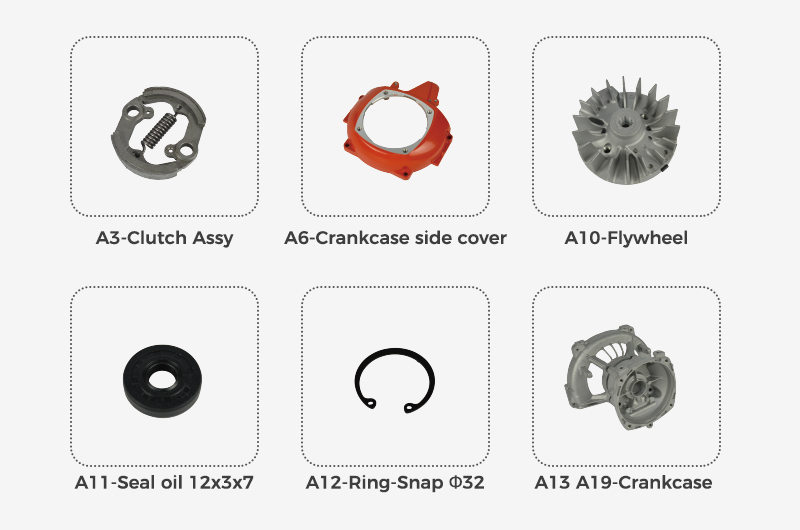

| A-3 | Hoof Block Assembly | A-48 | Cross Spherical Screws Come With Flat Pads |
| A-4 | Flat Gasket | A-49 | Cylinder Top Cover |
| A-5 | Socket Head Cap Screws | A-50 | Cross Spherical Screws Come With Flat Pads |
| A-6 | Side Cover | A-51 | Cylinder Cover Block |
| A-7 | Split Positioning Pin | A-52 | Carburetor Seat Gasket |
| A-8 | Baffle | A-53 | Carburetor Seat |
| A-9 | Flange Surface Self-Locking Nut | A-54 | Hexagon Socket Combination Screws |
| A-10 | Magnetic Flywheel | A-55 | Gasket,Carburetor |
| A-11 | Oil Seal | A-56 | Carburetor |
| A-12 | Elastic Retaining Ring For Hole | A-56-1 | Dust Cover |
| A-13 | Large Crankcase | A-57 | Air Filter Seat Assembly |
| A-14 | Split Positioning Pin | A-58 | Socket Head Cap Screws |
| A-15 | Gasket,Crankcase | A-59 | Anti-Spray Plate |

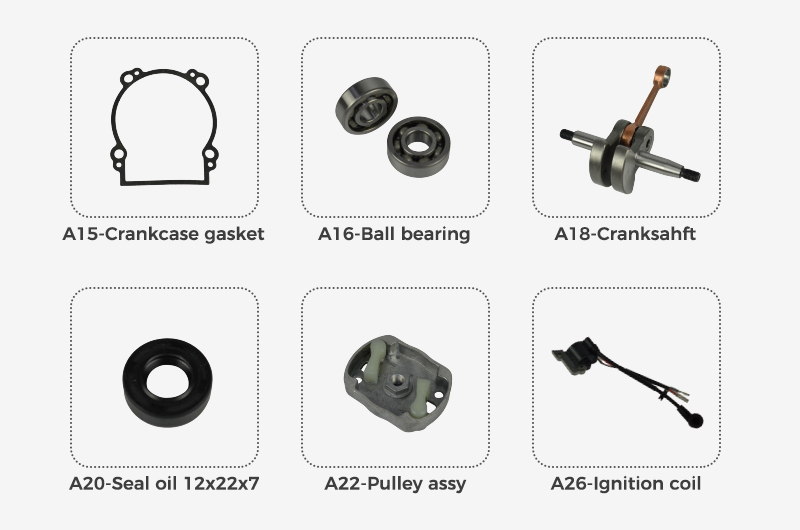

| A-16 | Ball Bearing | A-60 | Air Filter Cotton |
| A-17 | Woodruff Key | A-60-1 | Sponge Filter |
| A-18 | Crankshaft Assembly | A-61 | Air Filter Cover |
| A-19 | Small Crankcase | A-61-1 | Locking Knob |
| A-20 | Oil Seal | A-62 | Socket Head Cap Screws |
| A-21 | Socket Head Cap Screws | A-63 | Baffle |
| A-22 | Dial | A-64 | Fuel Tank Assy |
| A-23 | Launcher | A-65 | Fuel Tank Protective Seat |
| A-24 | Cross Spherical Screws Come With Flat Pads | A-66 | Socket Head Cap Screws |

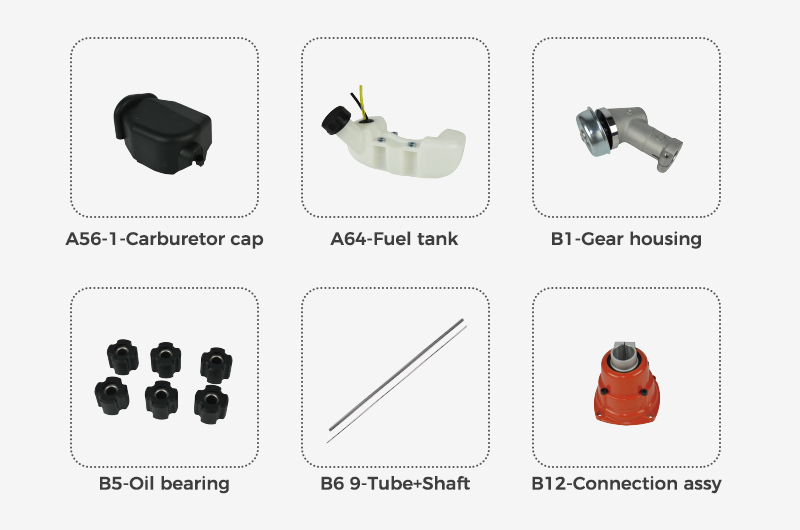

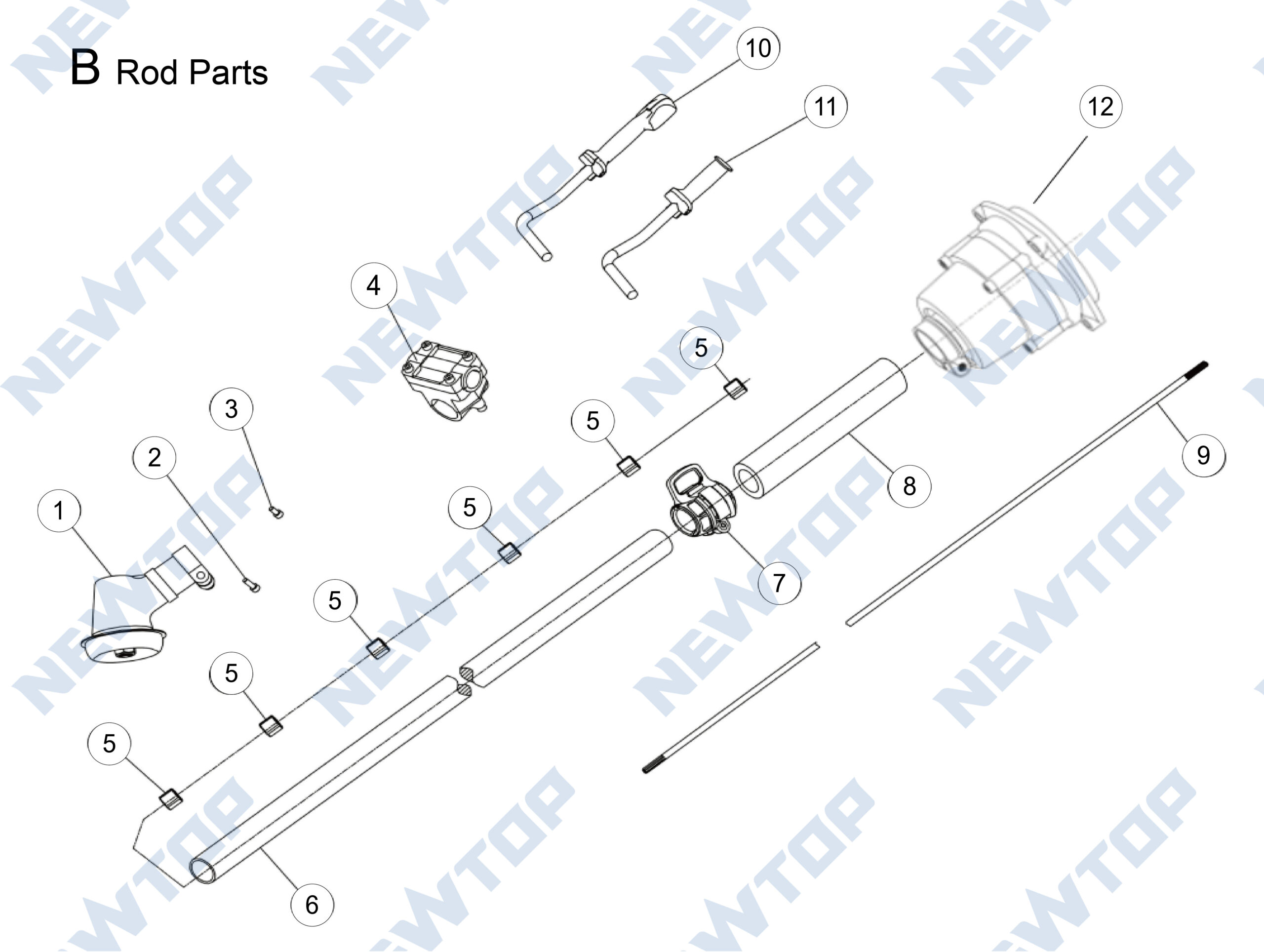

| A-25 | Flameout Line Components | B-1 | Gearbox/Working Head Assembly |
| A-26 | Ignition Coil | B-2 | Socket Head Cap Screws |
| A-27 | Copper Flat Pad | B-3 | Socket Head Cap Screws |
| A-28 | Socket Head Cap Screws | B-4 | Fixing Seat Assembly |
| A-29 | Socket Head Cap Screws | B-5 | Oil Bearings |
| A-30 | Copper Flat Pad | B-6 | Aluminum Tube |
| A-31 | Socket Head Cap Screws | B-7 | Buckle |

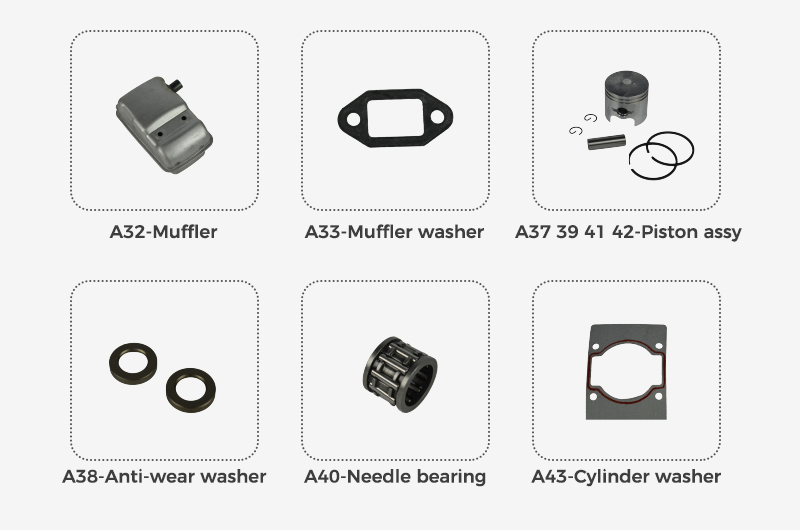

| A-32 | Muffler | B-8 | Leather Sheath |
| A-33 | Muffler Graphite Gasket | B-9 | Transmission Shaft |
| A-34 | Muffler Aluminum Gasket | B-10 | Right Hand Handle Assembly |
| A-35 | Socket Head Cap Screws | B-11 | Left Hand Handle Assembly |
| A-36 | Muffler Baffle | B-12 | Clutch Disc Assembly/Output Seat |
| A-37 | G Type Circlip | - | Other Replacement Parts |
| A-38 | Anti-Wear Pads | - | Grass Cover |
| A-39 | Piston Pin | - | Grass Cover Pressure Plate |
| A-40 | Needle Roller Bearings | - | Straight Blade |
| A-41 | Piston | - | Strap |
| A-42 | Piston Rings | - | Proportioning Kettle |
| A-43 | Gasket,Cylinder | - | Funnel |

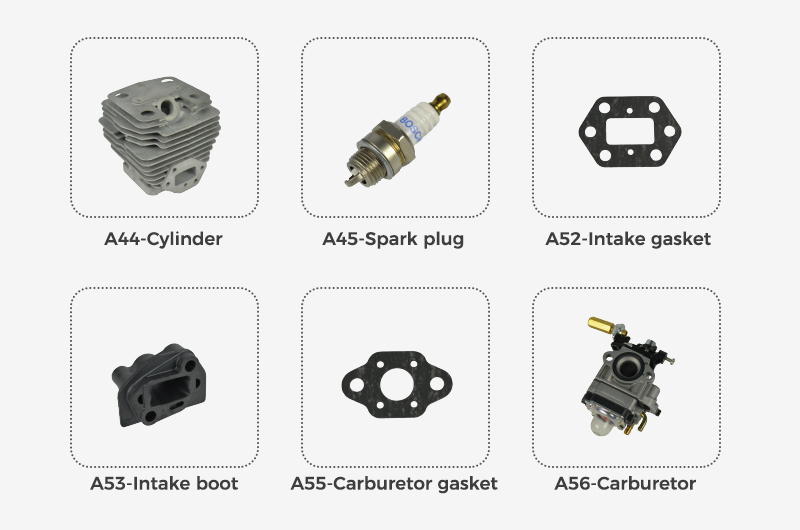

| A-44 | Cylinder | - | Big Tie |
| A-45 | Spark Plug |
