Built for large-volume water movement, the NEWTOP NTWP40 balances strong discharge capability with long-term structural reliability. Its reinforced frame, heavy-duty pump construction and stable operating characteristics make it a practical solution for high-demand irrigation, emergency drainage and other field applications requiring dependable water transfer.
The NEWTOP NTWP40(15HP) combines a high-capacity self-priming pump with a rugged mechanical structure to meet demanding water-transfer needs. Its cast-iron impeller and aluminum pump body are engineered through fluid-dynamic machining, enabling strong lift performance and consistent flow output across long operating periods.
A reinforced casing structure enhances impact resistance, keeping vibration to a minimum even during high-load use. Internally, drop-forged steel components contribute to long service life, while the optimized cylinder design improves heat efficiency and helps reduce fuel consumption under continuous operation.

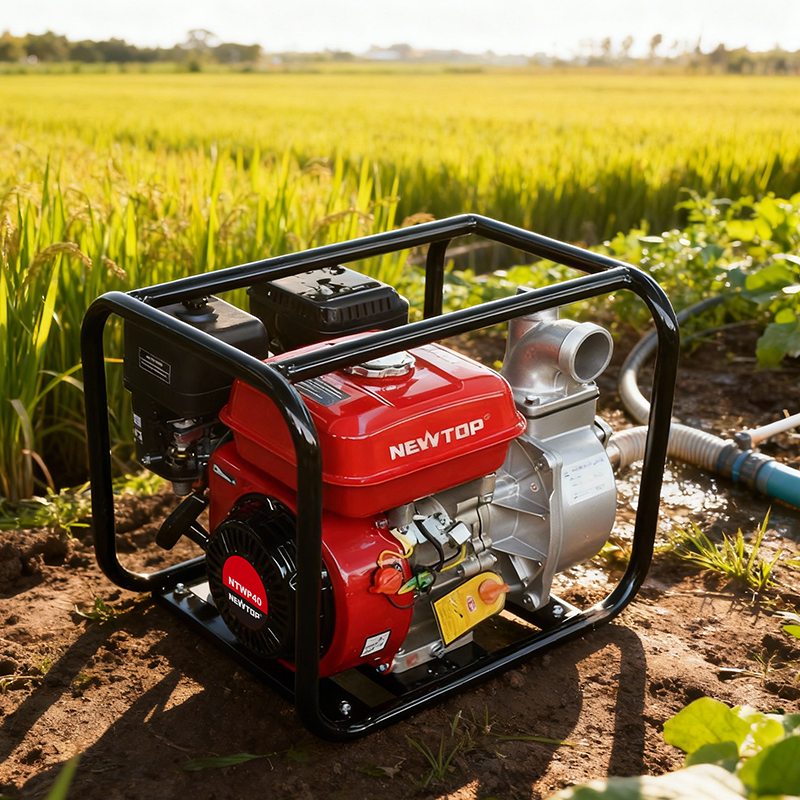

Designed to function reliably between -5 °C and 45 °C and tested in extended high-intensity conditions, the NEWTOP NTWP40 is suitable for agricultural irrigation, firefighting support, flood control, daily water supply, and marine-related pumping work. Its dependable build also makes it an excellent choice for gasoline water pump suppliers, outdoor power equipment dealers, and garden machinery suppliers seeking a durable and versatile pumping solution.
| Inlet Size | 100mm(4") |
|---|---|
| Outlet Size | 100mm(4") |
| Max. flow | 91m³/h |
| Lift Height | 28m |
| Suction Lift | 6m |
| Pump Type | Self-priming pump |
| Material of Impeller | Cast iron |
| Material of Pump body | Aluminium |
| Engine Model | 190F |
| Engine Type | Single cylinder,Air cooling,4 stroke,OHV |
| Bore x Stroke(mm) | 90x66 |
| Compression Ratio | 8.5:1 |
| Max. Output | 15.0hp |
| Max.Torque | 26N.m |
| Displacement | 420cc |
| Material of Crankshaft | Drop-froging Steel |
| Material of Camshaft | Drop-froging Steel |
| Fuel Consumption(g/kw.h) | ≤370 |
| Starting Type | Manaul |
| Fuel Tank Capacity | 6.5L |
| Oil Capacity | 1.1L |
