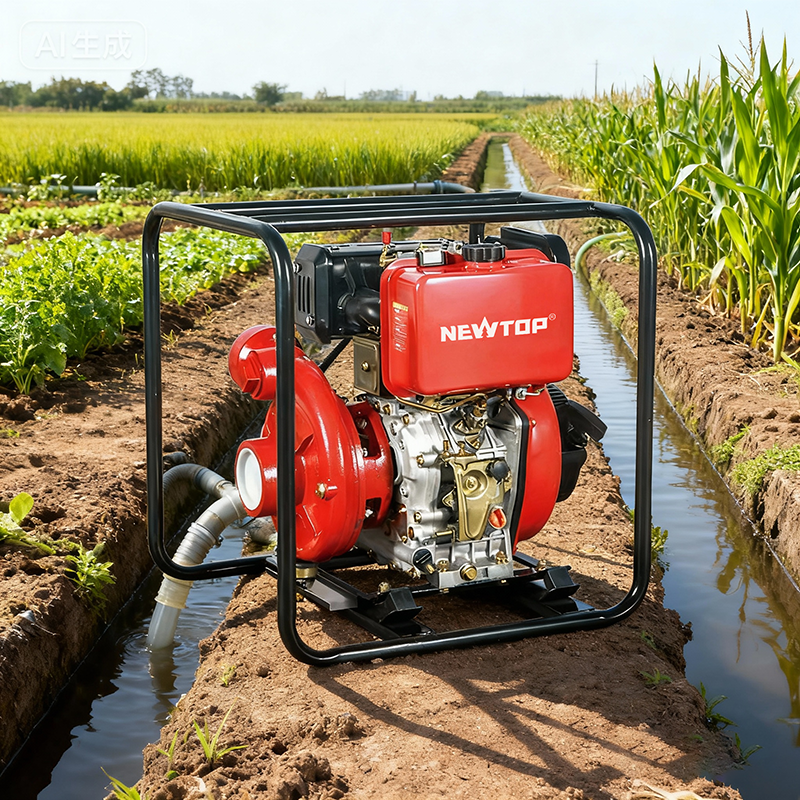

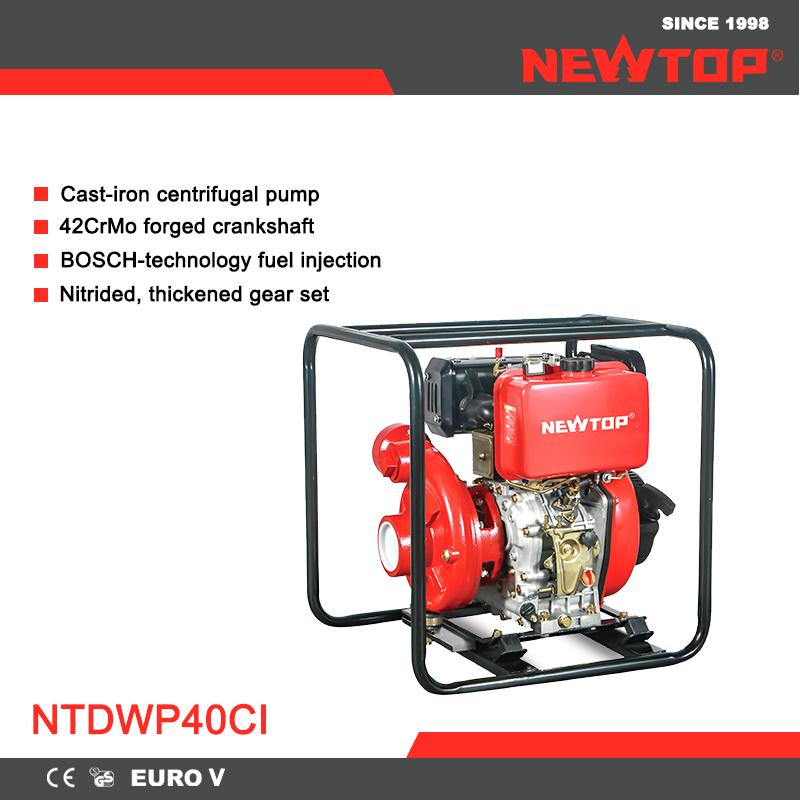

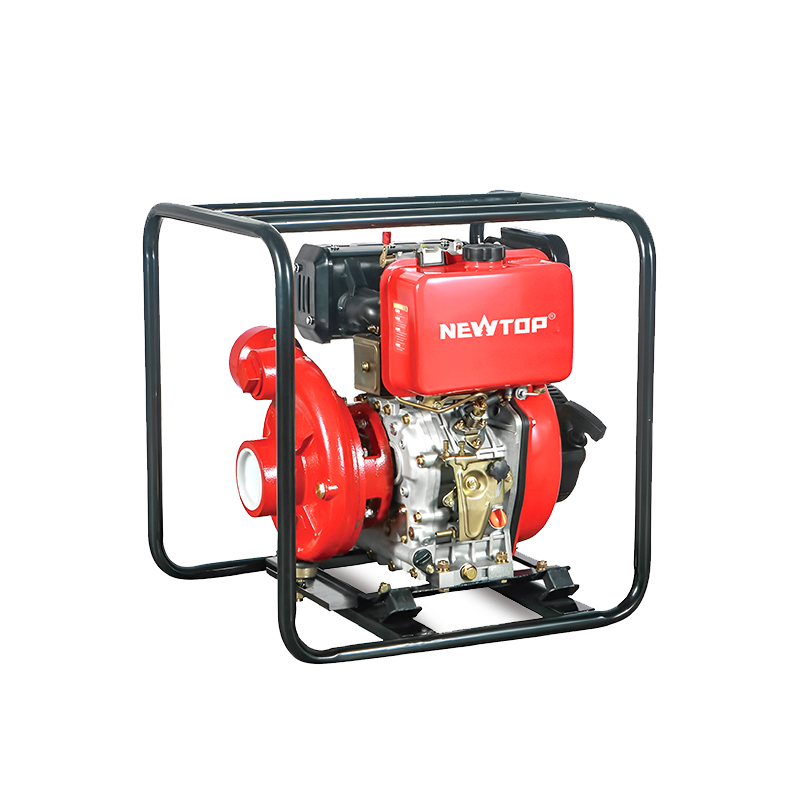

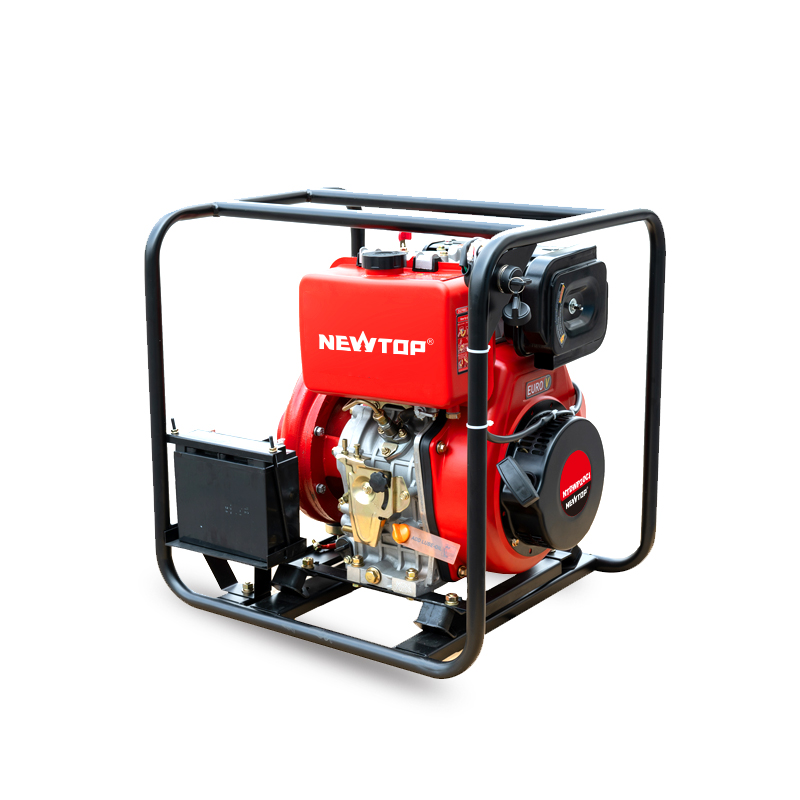

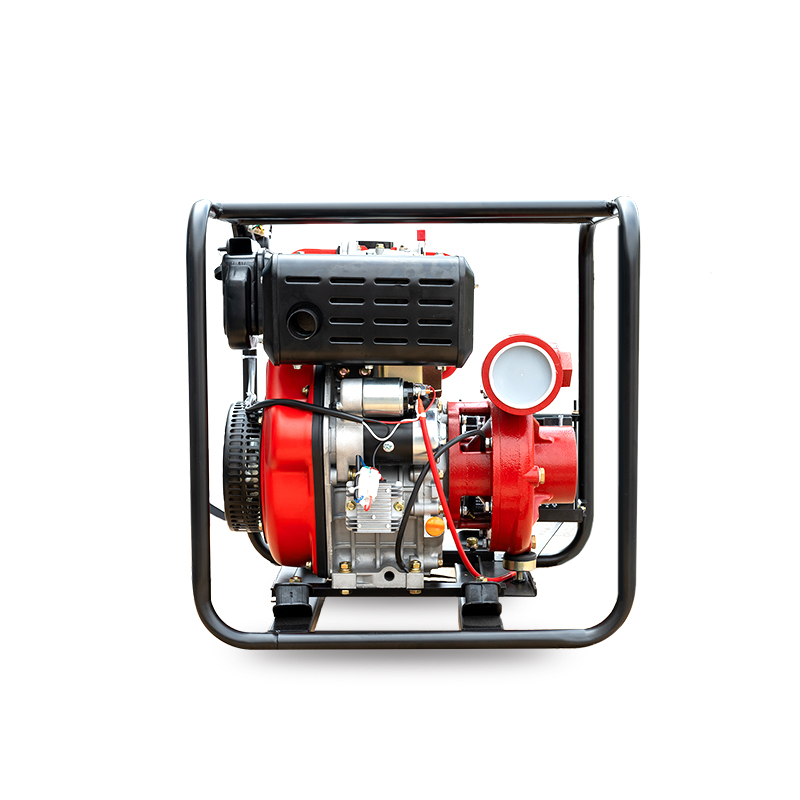

Built for significant water-movement applications, the NEWTOP NTDWP40CI utilizes a robust cast-iron pump and a high-torque diesel engine to deliver strong flow while maintaining stable lift performance. It is ideal for large-area irrigation and emergency pumping.
The NEWTOP NTDWP40CI provides strong flow performance up to 93 m³/h, thanks to its hydraulically optimized cast-iron pump structure. Its diesel engine incorporates premium materials and a fuel-efficient injection system, ensuring excellent reliability during extended pumping cycles.
The pump’s reinforced frame and anti-vibration design increase stability during operation, making it suitable for agricultural irrigation, large-volume drainage, fire-support water movement, rural water supply and similar demanding environments.
| Inlet/Outlet Dia.(in/mm) | 4"(100) |
|---|---|
| Lift H.max(m) | 40 |
| Flow Q.max(m³/h) | 93 |
| Suction H.max(m) | 6 |
| Engine Model | NTDE192FA |
| Broke x Stroke(mm) | 92x75 |
| Displacement(cc) | 499 |
| Rated Rotation Speed(rpm) | 3600 |
| Rated power(kW) | 8.6 |
| Loading Quantity(20"/40") | 173/318 |
